Buyer guide · Woodworking

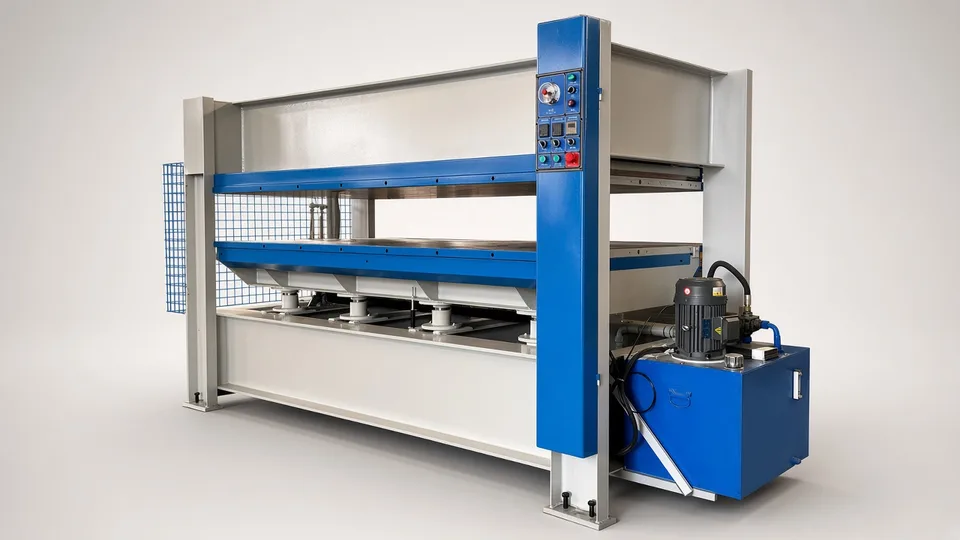

Veneer hot press from China

Veneer hot presses are sold by tonnes, but the glue line feels force divided by platen area, so a bigger platen on the same cylinders presses each square millimetre less.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Force against platen area

Divide rated force by the platen area. Then check it against the pressure your glue supplier asks for on your veneer and board.

Daylights

Each opening presses one panel stack. More daylights raise output per cycle but take longer to load.

Heating: electric, thermal oil or steam

Thermal oil needs its own heater circuit; steam needs a boiler. Ask the platen temperature spread.

Cylinders and platen thickness

Cylinder count and bore set the force. A thin platen bends between cylinders and leaves weak spots.

Loading

Manual loading or a loader. Loading time often sets real output more than the cycle.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Largest panel, and board: MDF, particleboard or plywood.
Face: natural veneer, reconstituted veneer or laminate.
Glue with its pressure, temperature and time.
Panels per shift, which sets daylights.
Heat source on site.

Turn the claim into a demonstration.

Require this	A pass looks like
Measure platen temperature at centre and corners on every daylight.	All points inside the offer's stated spread, logged in the FAT report.
Press your veneer on your board with your glue.	No bubbles, bleed-through or loose areas on any counted panel.
Read the hydraulic gauge at full load.	Reading converts to the rated force within the offer's tolerance.

The documents that must arrive with it.

EU Declaration of Conformity, 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Hydraulic circuit diagram with cylinder bore and working pressure.
Pressure Equipment Directive 2014/68/EU papers for any thermal oil heater or steam parts delivered with it.

The one people forget. The guarding and light curtain description for the loading side, a common gap on presses.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your parts are routed, curved or profiled fronts.

A membrane press. Flat platens cannot wrap an edge.

You make plywood from core veneers in volume.

A plywood line with cold pre-press and multi-daylight hot press.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 12Twelve marketplace listings for veneer hot presses, checked October 2026, advertised from US$6,000 to US$80,000, most without platen size or heating method. Asking prices, not landed cost.
Listings · 1One veneer hot press, checked October 2026, stated a 1,300 x 2,500 mm platen, 1,200 kN from six 100 mm cylinders, three daylights and a 4 to 5 minute cycle.
Arithmetic1.3 x 2.5 m = 3,250,000 square mm. 1,200,000 N / 3,250,000 = about 0.37 N per square mm. 60 / 5 = 12 and 60 / 4 = 15 cycles an hour, x 3 daylights = 36 to 45 panels.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Membrane press machine. Choose a membrane press when your parts are shaped and the foil must wrap the edge.
Panel saw. Look at a panel saw to cut veneered boards to size after pressing.

Every machine we source in this area is on the Woodworking page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Veneer hot press inspection checklist: what to check?+

Platen temperature map, gauge at full load, loading-side guarding, and your panels without faults.

Best veneer hot press from China: what separates offers?+

Force per square millimetre on your panel, platen flatness and heating. Tonnes alone mislead.

Veneer hot press EU compliance: what applies?+

Machinery rules, plus pressure equipment rules for oil or steam parts under them.

Import veneer hot press to EU: who carries the paperwork?+

You, when buying direct. Check the Declaration names model and serial number.
