Buyer guide · Woodworking

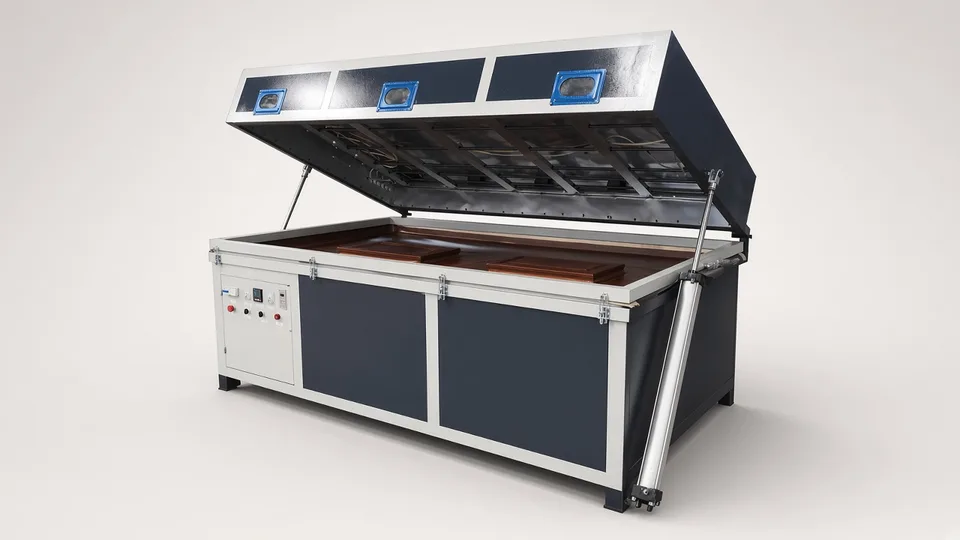

Membrane press machine from China

A membrane press wraps foil or veneer over routed fronts, and vacuum alone can never press harder than the air around it, so deep profiles need positive pressure that cheap presses omit.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Vacuum only or vacuum plus positive pressure

Vacuum pulls the membrane down with, at most, atmospheric pressure. Positive pressure pushes from above as well and forms deeper edges. Ask for both figures.

Silicone membrane or membraneless

A silicone membrane lets you press veneer and thin foils. Membraneless mode presses PVC foil directly. Ask which modes it runs and the spare membrane price.

Heating: infrared or oil-heated plate

Foil must reach forming temperature evenly. Ask the method and the spread across the table.

Pin table and part lifting

Pins hold parts off the table so foil wraps the edge. Ask maximum part height.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Part types: cabinet doors, profiles, curved panels, and the deepest routed edge.
Foil type and thickness, PVC, PETG or veneer, and whether you need high gloss.
Largest part and how many parts per table load.
Glue system for the foil and its activation temperature.
Power and compressed air available.

Turn the claim into a demonstration.

Require this	A pass looks like
Press a full table of your routed fronts with your deepest profile and thickest foil.	Foil fully bonded into every groove and around every edge on counted parts, with no whitening at corners.
Log table temperature at centre and corners during the cycle.	All points within the spread written in the offer.
Peel test on cured samples.	Foil tears or MDF fibres come away before the glue line fails.

The documents that must arrive with it.

EU Declaration of Conformity, 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
A statement on whether the positive pressure chamber falls under the Pressure Equipment Directive 2014/68/EU.
Wiring diagrams and 2014/35/EU and 2014/30/EU references for heaters and control.

The one people forget. The membrane specification, so you can buy a replacement that fits and survives the same temperature.

When this is the wrong machine.

Buy something else if

Named, not hedged

You laminate flat boards with veneer or high-pressure laminate.

A veneer hot press. Flat hydraulic platens press flat panels harder and faster.

You only band the edges of flat panels.

An edge banding machine. Wrapping a whole face to cover one edge wastes foil.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 12Twelve marketplace listings for vacuum membrane press machines, checked October 2026, advertised from US$1,790 to US$160,000, none giving table size in the summary. Asking prices, not landed cost.
Listings · 68One catalogue of 68 vacuum membrane press listings, checked October 2026, ranged US$2,500 to US$7,500 FOB and mixed single table, double table and clamshell designs.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Veneer hot press. Choose a veneer hot press when your parts are flat and need high platen pressure.
Edge banding machine. Look at an edge bander when only the panel edge needs covering.

Every machine we source in this area is on the Woodworking page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Membrane press machine sourcing guide: what to ask first?+

Vacuum or positive pressure, membrane mode, heating and maximum part height.

Chinese vs European membrane press: what differs?+

Positive pressure, heating evenness and membrane quality on your deepest part.

Membrane press machine CE documentation: what should arrive?+

A Declaration of Conformity and a statement on whether the chamber is pressure equipment.

Membrane press machine EU importer: what is my duty?+

You, when buying direct; check the conformity papers before use.
