Buyer guide · Woodworking

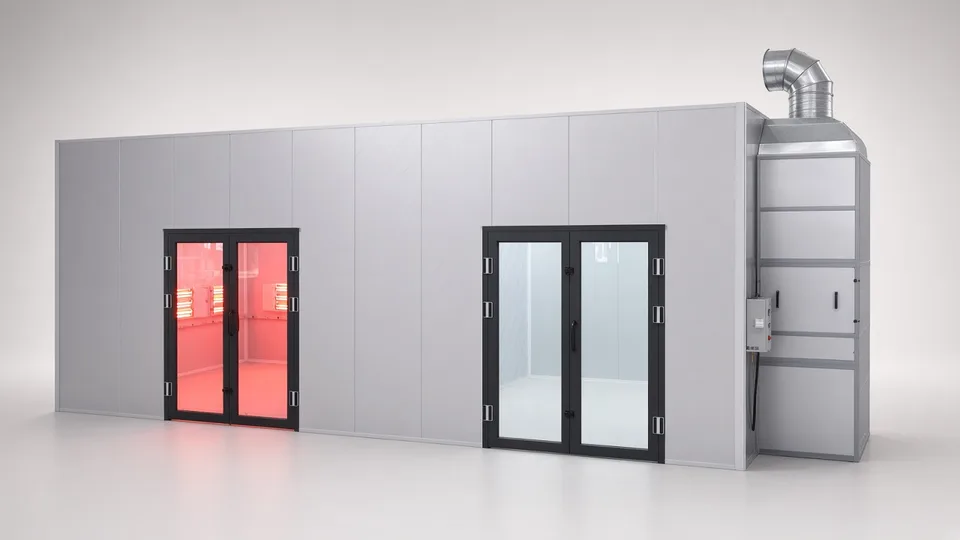

Furniture spray booth from China

A spray booth is priced by size, but what keeps mist off the sprayer and the finish is air speed across the open face, and a big booth with small fans moves air slowly.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Wet water curtain or dry filter

Water curtain booths wash overspray into a tank that leaves sludge and dirty water. Dry booths need filter changes. Price the running side too.

Fans against open face

Divide stated airflow by open face area. That face velocity decides whether mist reaches the operator.

Motors and lighting in the spray zone

Solvent lacquer can form an explosive atmosphere in the booth. Ask what ATEX 2014/34/EU marking the fans, motors and lights carry.

Exhaust stack and emissions

Solvent vapour still leaves the stack. Emission permits are the operator's matter; ask what treatment is fitted.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Largest piece you spray, such as a wardrobe side.
Coating: water-based, solvent PU or NC lacquer, and daily volume.
Room size and where the stack can exit.
Supply voltage, and drainage for a wet booth.
Your permit position for solvent use.

Turn the claim into a demonstration.

Require this	A pass looks like
Measure air speed at nine points across the open face.	Every point at or above the offer's stated speed, in the FAT report.
Spray a test panel with your coating at production rate.	No mist drifting out of the face and no overspray on the panel.
Check the marking plate on each spray zone motor and light.	Marking matches the ATEX category in the offer.

The documents that must arrive with it.

EU Declaration of Conformity under 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
ATEX 2014/34/EU declarations for fans, motors and lights used in the spray zone.
Fan curves showing airflow at the stated pressure.

The one people forget. The fire authority or insurer often asks for the booth layout and fire plan before the first coat.

When this is the wrong machine.

Buy something else if

Named, not hedged

You coat flat panels in volume every day.

An automatic spray line or roller coater. A manual booth runs at the sprayer's speed.

The fault starts before coating.

A wide belt sander. Better air cannot hide poor sanding.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 12Twelve marketplace listings for water curtain spray booths, checked October 2026, advertised from US$200 to US$20,000, most with no size or airflow. Asking prices, not landed cost.
Listings · 1One furniture water curtain booth, checked October 2026, stated 4,000 x 2,250 x 2,360 mm, 20,000 m3/h from two 5.5 kW fans, and over 0.6 m/s air speed.
Arithmetic20,000 / 3,600 = about 5.6 m3 per second. Open face 4.0 x 2.36 m = 9.44 square m. 5.6 / 9.44 = about 0.59 m/s.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Wide belt sanding machine. Choose a wide belt sander when the finish fault starts at sanding.
Wood dust collector. Look at a dust collector for the cutting and sanding side.

Every machine we source in this area is on the Woodworking page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Best furniture spray booth from China: what decides it?+

Measured face velocity, correctly marked spray zone equipment, and a filter system you can run.

What should a spray booth factory audit look at?+

An anemometer and fan curves on site, and experience with solvent coatings.

Furniture spray booth EU compliance: what applies?+

Machinery rules, ATEX for spray zone equipment, and workplace and emission rules on you.

How do I import a spray booth to the EU?+

Check the Declaration and ATEX papers before shipping; your name goes on them as importer.
