Buyer guide · Textile & garment

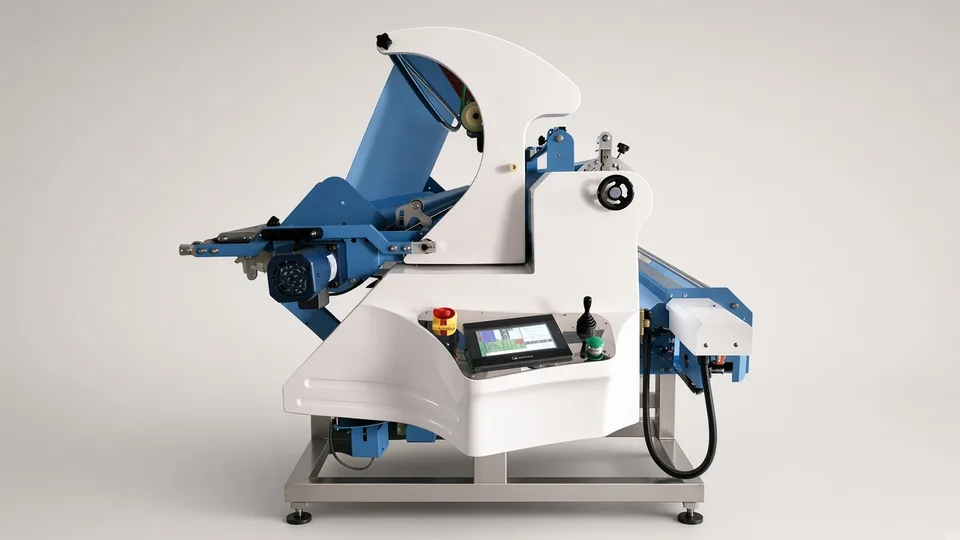

Fabric spreading machine from China

A fabric spreading machine is sold on speed, but a spreader that lays stretch fabric under tension produces a lay that looks perfect and cuts every piece short once the fabric relaxes.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Tension-free feed

Knits and elastane blends must be fed without pulling. Ask whether the machine drives the roll and the fabric together or pulls fabric off a passive roll.

Edge alignment

An edge sensor keeps one selvedge straight across the lay. Without it, lays wander and the marker loses its safe margin.

Face-up, face-to-face and turnover

Some fabrics must be spread face to face or folded. Ask which spreading modes the machine does without a turntable option at extra cost.

Roll weight and width

Heavy denim or home textile rolls need a stronger cradle and loading aid. Width must cover your widest fabric.

Table and rail length

The spreader runs on your cutting table. Ask for the rail length included and whether the table is in the price.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Every fabric you spread, noting knits, stretch blends and slippery linings.
Largest roll weight, diameter and width.
Lay length and plies per lay.
Spreading modes: face up, face to face, folded.
Your existing cutting table length and height, or whether a table is needed.

Turn the claim into a demonstration.

Require this	A pass looks like
Spread a full lay of your stretch knit, rest it for the time you normally wait, then measure each ply end.	Ply lengths after relaxing inside your tolerance, with no ply shorter than the marker.
Spread a lay of your widest fabric and measure the aligned edge along its length.	Edge deviation inside the figure written in the offer at every measuring point.
Run the spreader at its quoted speed on a woven and on a lining.	No wrinkles or skewed plies at that speed, and the actual metres per minute recorded.

The documents that must arrive with it.

EU Declaration of Conformity naming the serial number, under 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Low voltage 2014/35/EU and EMC 2014/30/EU references.
Manual describing the pinch points at the cradle and end catchers and how they are guarded.

The one people forget. The rail and table drawings. The spreader must fit a table your cutter or cutting staff already use.

When this is the wrong machine.

Buy something else if

Named, not hedged

You cut single plies or samples.

An automatic fabric cutting machine fed straight from the roll. A spreader earns its keep only on multi-ply lays.

Your problem is defects found after cutting.

A fabric inspection machine upstream. Spreading faster only cuts faulty fabric faster.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 11Eleven marketplace listings for fabric spreading machines, checked September 2026, advertised US$4,900 to US$19,444. One stated a speed, 110 m per minute; one stated a working width of 1,725 to 2,630 mm. Asking prices, not landed cost.
ArithmeticAt 110 m per minute a 10 m lay takes 10 / 110 = about 5.5 seconds per ply of travel, before turning and cutting at the ends.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Automatic fabric cutting machine. Pair with an automatic cutter when the lays you spread are cut in stacks.
Fabric inspection machine. Buy inspection first if faults in the fabric, not laying speed, cost you most.

Every machine we source in this area is on the Textile & garment page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European fabric spreading machine: which handles stretch better?+

The one with a driven, tension-controlled feed. Test both on your most elastic knit and measure ply length after relaxation.

What is in a fabric spreading machine sourcing guide?+

Match modes and roll weight first, then edge control, then speed. Speed quoted on a stable woven says little about knits.

What EU compliance applies to a spreader?+

Machinery rules plus low voltage and EMC. Ask for the declaration and the technical file; the CE mark by itself is a claim.

Who is the EU importer when I buy a spreader direct?+

Your business, if it places the machine on the EU market. You check the conformity papers and your details go on the machine or documents.
