Wovens, knits or both
Knits need a driven, tension-free feed and often open-width or tubular handling. A woven-only frame pulls knits out of shape.
No DramaChinaIndustrial sourcing Contact
No DramaBuyer guide · Textile & garment

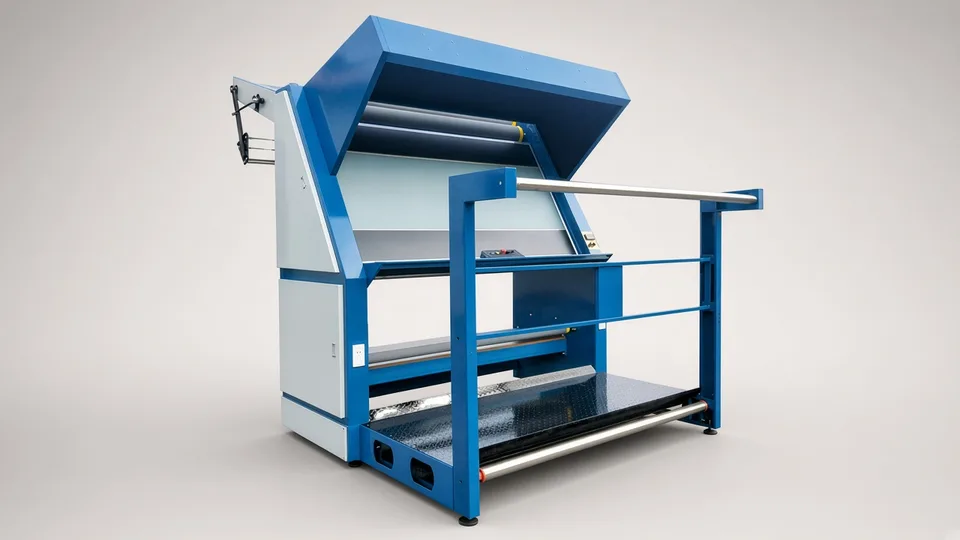

A fabric inspection machine only helps if it runs your fabric without stretching it: a knit pulled taut on the frame shows fewer faults and measures longer than it is, so the roll you pass is not the roll you cut.
01
Knits need a driven, tension-free feed and often open-width or tubular handling. A woven-only frame pulls knits out of shape.
Ask how length is measured, by roller or encoder, and whether the machine weighs and labels each roll.
Backlight and top light at a tilted board show different faults. Ask the light type and whether the board angle adjusts.
Manual marking, a keypad that records points per roll, or camera detection at a much higher price. Match it to how your buyers grade fabric.
02
Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.
03
| Require this | A pass looks like |
|---|---|
| Run a roll of your stretch knit with a known length and marked faults. | Length within your tolerance of the known figure and every marked fault found. |
| Print or export the inspection report for that roll. | Points per roll and fault positions match the operator's marks. |
04
A fabric rolling machine, which is simpler.
Fix the process first; inspection finds faults, it does not prevent them.
05
We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.
06
Every machine we source in this area is on the Textile & garment page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.
Straight answers
Tension control on knits, length accuracy and the reporting software. Test both on your stretch fabric.
Length accuracy on a known roll, tension on a knit, lights working, report printed, serial number against the declaration.
A Declaration of Conformity under 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230, plus low voltage 2014/35/EU and EMC 2014/30/EU.
You, when your company places it on the EU market. Your name goes on the machine or papers and you check the conformity file.
