Tension control
Knits and stretch fabric need low, steady tension. Ask whether tension is set by a brake, a dancer or a driven feed, and whether it holds as the roll grows.
No DramaChinaIndustrial sourcing Contact
No DramaBuyer guide · Textile & garment

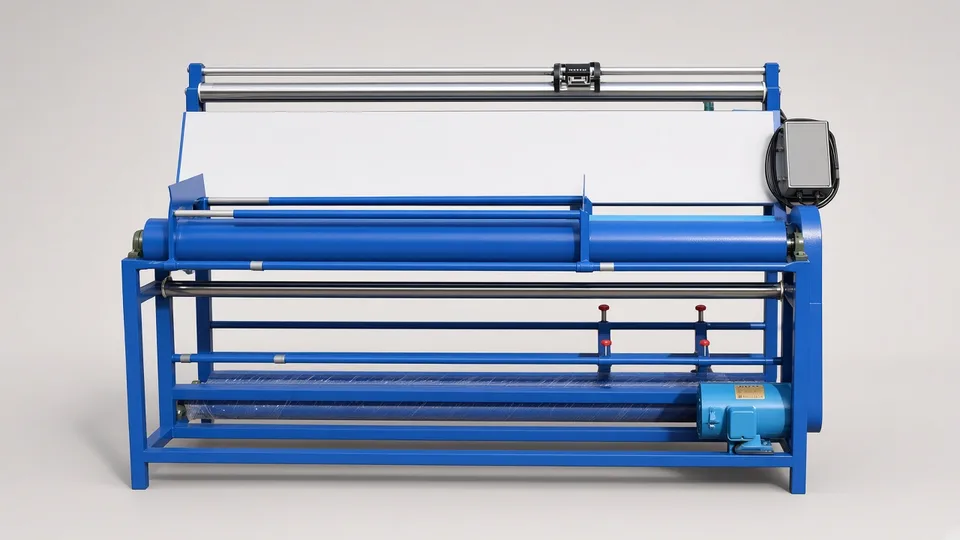

A fabric rolling machine looks simple, but the roll it makes decides everything downstream: rolled too tight a knit stretches and shrinks later, rolled loose or crooked the roll telescopes, and the length on the label is only as good as the measuring wheel.
01
Knits and stretch fabric need low, steady tension. Ask whether tension is set by a brake, a dancer or a driven feed, and whether it holds as the roll grows.
An infrared or photo sensor keeps the edge straight so rolls do not telescope. Cheaper machines rely on the operator.
A measuring wheel slips on smooth or coated fabric. Ask how length is measured and how it is calibrated.
Some machines roll on a tube, some fold or double fabric first. Ask which your buyers expect.
02
Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.
03
| Require this | A pass looks like |
|---|---|
| Roll a known length of your knit and of a coated fabric. | Measured length within your tolerance on both, and no stretch visible on the knit. |
| Roll a full-size roll and check its edge. | Edge offset along the roll inside the figure written in the offer, with no telescoping. |
04
A fabric inspection machine with lighting and defect logging.
A fabric spreading machine; a rolling machine does not build lays.
05
We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.
06
Every machine we source in this area is on the Textile & garment page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.
Straight answers
Only if tension and edge control are better on your fabric. Roll a knit on both and measure it.
Length accuracy, edge alignment, tension on a knit, guarding at the nip rollers, serial number against the declaration.
Machinery rules, 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230, plus low voltage 2014/35/EU and EMC 2014/30/EU. Ask for the declaration and the file.
The company placing it on the EU market. Buying direct, that is you.
