Buyer guide · Plastics & molding

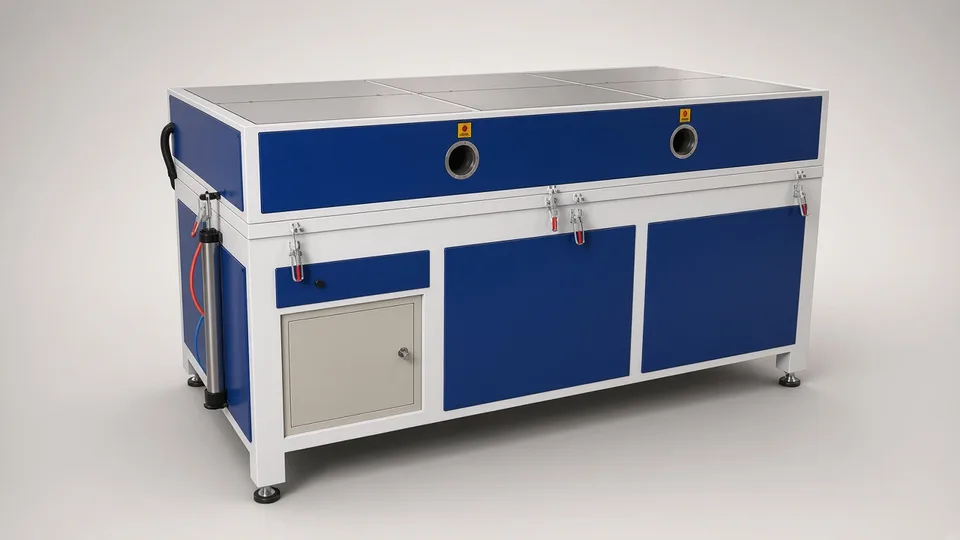

Vacuum forming machine from China

Under the name vacuum forming, suppliers sell both small cut-sheet formers for thick parts and roll-fed packaging lines, and the first job is to be sure which one you are being quoted.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Cut sheet or roll fed

A cut-sheet former clamps one sheet at a time and suits thick parts such as covers, signs, bath trays and vehicle panels. A roll-fed line forms thin packaging continuously. They share a name and little else.

Maximum sheet size and clamp frame

The clamp frame sets the largest sheet. Ask whether frame windows adjust for smaller sheets, or whether every smaller part wastes a full-size sheet.

Heaters: top only or top and bottom

Thick sheet needs heat from both sides to soften evenly. Ask for heater type, the number of separately controlled zones, and whether a sag sensor stops the sheet drooping onto the tool.

Plug assist and pre-stretch

A plug pushes the hot sheet into deep tools so corners do not thin out. A blown bubble pre-stretches the sheet first. Deep parts need at least one of them.

Trimming

A cut-sheet former leaves the part in a frame of waste sheet. Trimming needs a CNC router, band saw or trim press, and it is rarely in the quote.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Largest part size and depth, and the sheet size that needs.
Sheet material and thickness: ABS, HIPS, acrylic, PC, PETG or PE.
Parts per day and how many different tools you will run.
How parts will be trimmed after forming.
Power supply, and whether PC or ABS sheet will be dried before forming.

Turn the claim into a demonstration.

Require this	A pass looks like
Form your part from your sheet on the machine you will receive, for a counted set of cycles.	Every part fully formed, with no webbing at corners and no bubbles.
Measure wall thickness at the deepest corner of sample parts.	Corner wall at or above the minimum on your drawing.
Log heater zone temperatures across the platen during warm-up.	Every zone reaches and holds its set point within the spread written in the offer.

The documents that must arrive with it.

EU Declaration of Conformity with serial number under 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, plus 2014/35/EU and 2014/30/EU.
Risk assessment and standards list; ask whether EN 12409, for thermoforming machines, was applied.
Heater layout drawing with zone numbering and spare heater list.

The one people forget. The heater layout. Without it, replacing a failed element means guessing which zone it belongs to.

When this is the wrong machine.

Buy something else if

Named, not hedged

You make thin cups, lids or trays in millions.

A roll-fed plastic thermoforming machine that forms, cuts and stacks in one line.

Your part is closed and hollow, such as a tank or float.

A rotational molding machine, which forms the whole shell in one piece.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 10Ten marketplace listings for vacuum forming machines, checked September 2026, advertised FOB asking prices from US$3,300 to US$850,000. Six were roll-fed packaging lines. Asking prices, not landed cost.
Listings · 4The four cut-sheet or thick-sheet formers among them, checked September 2026, ran from US$3,300 for a semi-automatic unit to US$80,000 for robot-loaded machines.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Plastic thermoforming machine. Choose it for thin packaging at high volume from rolls.
Rotational molding machine. Choose it for closed hollow parts such as tanks.

Every machine we source in this area is on the Plastics & molding page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

What is the best vacuum forming machine from China?+

A cut-sheet former whose clamp frame fits your largest sheet, with top and bottom heaters for thick material and plug assist for deep parts.

Vacuum forming machine sourcing guide: what do I send first?+

Part drawing, sheet material and thickness, and daily volume. Ask each supplier to state sheet size, heater zones and whether trimming is included.

What goes on a vacuum forming machine inspection checklist?+

Heater zones, clamp frame seal, vacuum pump capacity and leak rate, plug drive, cooling fans, guarding, and a counted run on your sheet.

Who is the EU importer of a vacuum forming machine bought from China?+

Usually you, when you buy direct. Check the Declaration of Conformity matches the serial number before the balance payment, and keep the technical file reference.
