No DramaBuyer guide · Plastics & molding
A rotomolding machine is an oven and a set of arms, and the tank you want to make must fit the swing, the arm must carry the loaded mold, and the burner must be one your gas supplier will connect.
01

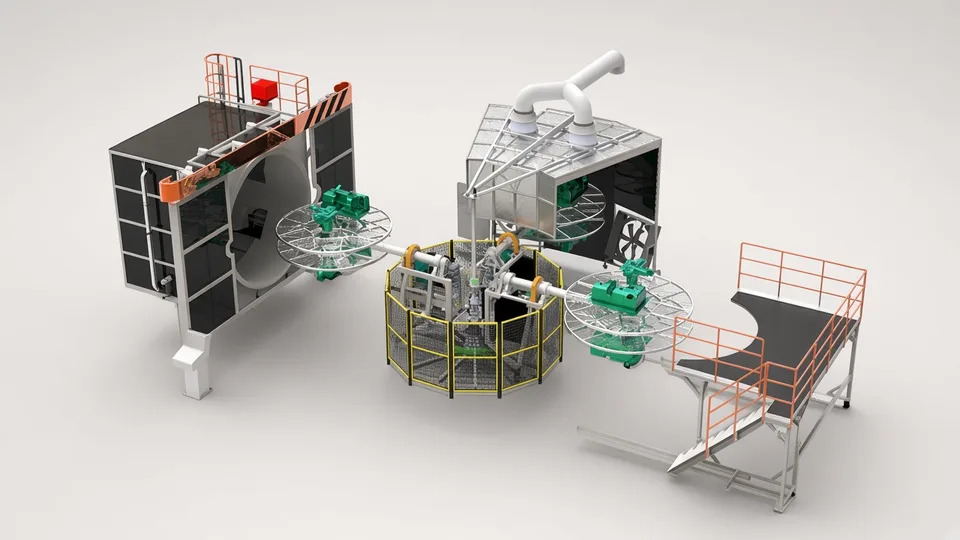

Shuttle machines move one or two carts in and out of the oven. Carousel machines index several arms through oven, cooling and loading. Rock and roll machines suit long parts such as kayaks. The type sets how many molds work at once.
The swing diameter is the largest mold assembly that can rotate inside the oven. Arm load is the heaviest mold plus powder it can carry. Your biggest tank sets both.
Ask for burner make, rated heat input, the fuel it is set up for, and the combustion safety controls. A burner your local gas authority will not approve is a costly surprise.
On a carousel, independent arms let each mold have its own oven time and speed. Ask whether the ratio between the two rotation axes can be set for each mold.
Molds are usually quoted separately. Ask whether they are cast aluminum or fabricated steel, and who is responsible if a mold leaks or distorts.
02
Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.
03
| Require this | A pass looks like |
|---|---|
| Heat the empty oven and log air temperature at several points. | All points reach set temperature within the spread written in the offer. |
| Mold your part, or one of similar size, for a counted set of cycles. | Each part complete, with no unmelted powder inside and no voids at corners. |
| Cut a sample part and measure wall at corners, flats and around inserts. | No point below the minimum wall on your drawing. |
04
05
A blow molding machine, which cycles in seconds rather than many minutes.
A vacuum forming machine working from thick sheet.
06
We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.
07
Every machine we source in this area is on the Plastics & molding page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.
Straight answers
One whose swing and arm load fit your largest mold, with a burner your site can connect. Then compare cycle count per shift.
Burner and combustion controls, oven insulation, and arm engineering. Some buyers pair a Chinese frame with a burner and controls they already know.
Oven temperature spread, arm rotation under load, burner safety shut-off, cooling fans, guarding at the loading station, and a counted run on your mold.
A Declaration of Conformity with the serial number, a technical file with risk assessment, burner documents and a manual in your language.
