Buyer guide · Material handling

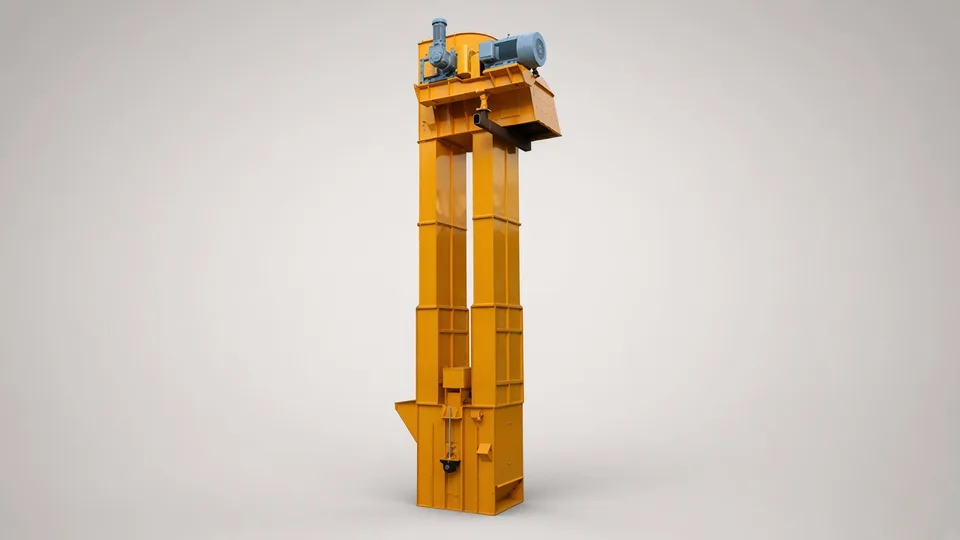

Bucket elevator from China

A bucket elevator lifts bulk material in a closed casing, so the hard part never shows on a quote: whether the buckets, the discharge style and the belt or chain suit your material, and what the dust inside that casing can do.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Belt, ring chain or plate chain

Belt types run faster and quieter and suit grain and light powders. Ring and plate chain types carry hot, heavy or abrasive material such as cement and sand. The quote should name which, and the belt plies or chain grade.

Bucket volume, spacing and fill

Capacity claims assume a bucket volume, a fill ratio, a spacing and a speed. Ask for all four, or the tonnes per hour figure cannot be checked against your density.

Discharge style

Centrifugal discharge throws material out at the head and needs speed. Continuous discharge runs slowly and treats fragile product gently. The wrong style breaks product or drops it down the return leg.

Casing, doors and venting

Plate thickness, inspection doors at head and boot, a boot clean-out, and where explosion vents would go. Grain and flour dust in a closed casing is the classic explosion risk.

Drive, backstop and head access

Motor and gearbox brand, a backstop so a loaded leg cannot run backwards, and a platform to reach the head. Head access is often missing from low quotes.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

The material by name, with bulk density, lump size, moisture, temperature and abrasiveness.
Lift height from inlet to discharge, and tonnes per hour at that density.
Whether the product is fragile, sticky, dusty, food or feed.
What feeds the boot and what receives at the head.
Whether your site has classified the area for combustible dust.

Turn the claim into a demonstration.

Require this	A pass looks like
Run your material, or one of the same density, at the quoted speed and weigh what arrives at the head over a timed period.	Measured tonnes per hour reach the quoted figure with no spill down the return leg.
Stop the elevator fully loaded, then restart it.	The backstop holds the loaded leg, and the drive restarts without belt slip or a motor trip.
Open each inspection door and press the stops at head and boot.	Doors are interlocked or tool-secured, and both stops need a manual reset.

The documents that must arrive with it.

EU Declaration of Conformity naming 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, with 2014/35/EU and 2014/30/EU.
Arrangement drawing with head and boot heights, bucket volume, spacing and the capacity calculation.
For combustible dust, ATEX 2014/34/EU marking and certificates for equipment meant for a dust zone, and the vent sizing basis.

The one people forget. Your own explosion protection document. Zoning the elevator and its silo is the employer's duty under the workplace directive 1999/92/EC, and insurers ask for it after an incident.

When this is the wrong machine.

Buy something else if

Named, not hedged

The material travels mostly sideways, over a short rise.

A screw conveyor or an inclined belt conveyor system.

The material is wet and sticky and will not leave the bucket at the head.

A screw conveyor or a cleated steep-angle belt, tested on your material first.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 12Twelve bucket elevator listings on one marketplace, checked October 2026, asked from US$825 to US$180,000 a piece or set, covering belt, ring chain, plate chain and Z-type designs. Asking prices, not landed cost.
Listings · 1One stainless Z-type bucket elevator for granules, checked October 2026, asked US$2,800 to US$3,500 a set.
ArithmeticWorked example: buckets of 2 litres, 75 percent full, every 0.3 m, at 1.5 m/s. 1.5 / 0.3 = 5 buckets a second, x 2 x 0.75 = 7.5 litres a second, x 3,600 = 27 m3 an hour. At 0.75 t/m3 that is 20.25 t/h.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Screw conveyor. Choose it when the path is mostly horizontal and dust must stay sealed in a tube.
Belt conveyor system. Choose it for long distances and gentle inclines without vertical lift.

Every machine we source in this area is on the Material handling page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European bucket elevator: where is the difference?+

Mostly in casing thickness, bucket and belt quality, the backstop and the explosion protection package. Compare those line by line, not the headline tonnes per hour.

What belongs on a bucket elevator inspection checklist?+

Bucket fixings and spacing against the drawing, belt or chain tracking, the backstop, casing welds and doors, and a weighed run on your material.

Which standard covers a bucket elevator in the EU?+

EN 618 covers mechanical handling equipment for bulk material other than fixed belt conveyors. Ask whether the design follows it.

Who is the EU importer of a bucket elevator?+

The company that places it on the EU market, often the buyer. It checks the declaration and technical file exist and adds its name and address.
