Buyer guide · Material handling

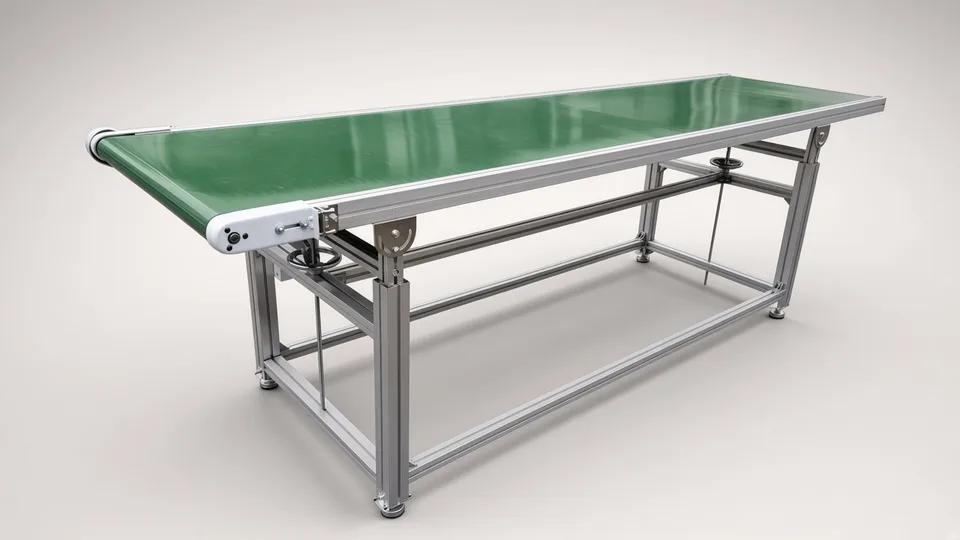

Belt conveyor system from China

The words belt conveyor cover a bench-top parcel conveyor and a kilometre of mine conveyor, so two quotes only compare once you have fixed the belt material, the load per metre, the incline and the hours it runs.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Belt material and cover

PVC or PU for cartons and food, rubber with fabric or steel cord for bulk. Ask for the belt maker, the plies and the cover thickness on the quote, not only the word PVC.

Load per metre and incline

A belt sized for light cartons on the flat can slip or stall on an incline with heavier product. Ask for the drive calculation at your worst case.

Drive, gearbox and motor

Brand, power and whether the motor is rated for continuous duty at your voltage and frequency. Low-price units often use a small geared motor sized for demonstration speed.

Tracking and take-up

Crowned pulleys, adjustable ends and a take-up that keeps tension over time. Poor tracking is the most common complaint after the first month.

Frame and support

Aluminium profile or painted or stainless steel. Check leg spacing, height adjustment and whether side guides are included.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

What goes on the belt: sizes, weights, or bulk material with its density and lump size.
Length, width, incline, and any curve or transfer.
Speed or throughput, and hours per day.
Wet, oily, hot, food-contact or dusty conditions.
Where it starts and stops, and which machine gives it the start signal.

Turn the claim into a demonstration.

Require this	A pass looks like
Run the conveyor loaded with your heaviest product at the quoted speed for a full shift.	No belt slip, motor temperature stable, and the belt stays inside its tracking marks.
Stop and start under full load ten times.	It restarts each time without stalling and without product falling at the transfer.
Press every emergency stop and pull-cord along the length.	The belt stops from every point and needs a manual reset to restart.

The documents that must arrive with it.

EU Declaration of Conformity naming 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, with low voltage 2014/35/EU and EMC 2014/30/EU.
Belt data sheet with material, plies and, for food, a declaration under Regulation (EC) 1935/2004.
Drive calculation and the parts list for pulleys, bearings and the gearbox.

The one people forget. The declaration of incorporation, if the conveyor is sold as part of a bigger line. A conveyor section built into your line may arrive as a partly completed machine, and then the line as a whole needs its own conformity assessment.

When this is the wrong machine.

Buy something else if

Named, not hedged

You move pallets or heavy crates with a flat, rigid base.

A pallet conveyor or roller conveyor system, which carries heavy units without belt wear.

You move powder or granules through a closed path, up a steep angle.

A screw conveyor or bucket elevator, which contain dust and climb steeply.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 10Ten belt conveyor system listings, checked September 2026, asked from US$400 a set to US$1,000,000 a set, with rubber, steel cord, modular and PVC belts under the same name. Asking prices, not landed cost.
Listings · 3Three light PVC or modular belt conveyor listings, checked September 2026, asked US$299 to US$7,800 a piece or set.
ArithmeticEach carton takes 400 + 200 = 600 mm of belt. At 0.5 m/s, 500 / 600 = 0.83 cartons a second, x 3,600 = 3,000 an hour.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Roller conveyor system. Choose it for cartons and totes that need to queue without pushing each other.
Screw conveyor. Choose it when powder or granules must travel enclosed, without dust.

Every machine we source in this area is on the Material handling page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European belt conveyor system: is the price gap real?+

Often, for simple sections. The gap closes once you specify a named belt, a rated motor and stainless parts. Compare equal specifications.

What goes on a belt conveyor inspection checklist?+

Belt data against the quote, motor nameplate, tracking under load, guards at pulleys and nip points, emergency stops, and frame welds.

Which standard covers a belt conveyor for bulk?+

EN 620 covers fixed belt conveyors for bulk material, and EN 619 covers unit load handling. Ask which one the supplier designed to.

Who is the EU importer of a belt conveyor?+

The company that places it on the EU market, often the buyer. That company checks the declaration and adds its name and address.
