Buyer guide · Material handling

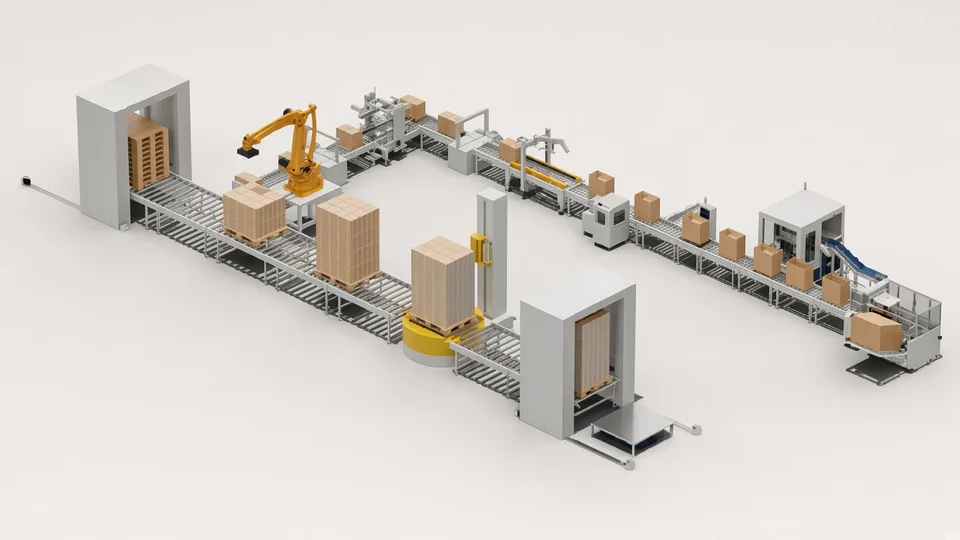

Automatic case handling line from China

A case handling line is several machines under one price, so the hard part is knowing which machines, conveyors and controls that price includes, and who answers when the erector, the packer and the palletizer stop each other.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Scope, machine by machine

Case erector, packer, sealer, labeller, checkweigher, palletizer, wrapper and the conveyors between them. A price range covering one erector up to a full line means nothing until each machine is listed.

Line control

One line controller with shared stops and signals, or separate machines that each run alone. Ask for the signal list between every pair.

Buffers between machines

Short accumulation conveyors let the line keep running through a brief stop at one machine. A line with no buffer stops entirely whenever any machine does.

Case range and changeover

The case sizes each machine takes, and the changeover time and tools on each. The slowest changeover sets the line's.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Every case size, with product and weight.
Cases per minute, and the product arriving from upstream.
A floor plan with the line route and forklift access.
Which machines you already own and must keep.
Tape or glue sealing, labels, and pallet pattern.

Turn the claim into a demonstration.

Require this	A pass looks like
Run the connected line with your cases at rated speed for an hour, stopping one machine briefly.	The buffers absorb the stop and the other machines keep running.
Press an emergency stop at each machine.	The stop halts the affected zone as described in the risk assessment, and restart needs a reset.

The documents that must arrive with it.

One EU Declaration of Conformity for the assembled line, naming 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027.
Declarations of incorporation for bought-in machines, and the line risk assessment.
Line layout, signal list and electrical schematics.

When this is the wrong machine.

Buy something else if

Named, not hedged

You pack one case size at a low rate.

Separate case erector and sealer machines with a person packing, and add automation step by step.

The line must join machines from several suppliers.

Buy the machines separately and pay one integrator for the line control and the declaration.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 9Nine end-of-line listings in two supplier catalogues, checked October 2026, combining case erecting, packing or sealing with wrapping or palletizing, asked from US$1,500 to US$40,000 a piece or set. Two ranges began at US$1,500, below the US$3,250 to US$3,650 the same catalogue asked for one case erector. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Carton sorting system. Read it if cases must be routed to different destinations after packing.
Robotic palletizer. Read it for the palletizing end of the line on its own.

Every machine we source in this area is on the Material handling page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European case handling line: what should I compare?+

The machine list, the line control and the buffers. Compare quotes with the same machines, not the same line name.

What is on a case handling line inspection checklist?+

An hour on your cases, a stop at each machine, changeovers timed and the signal list checked.

Who signs the CE declaration for a line?+

Whoever assembles the line and places it on the market. If you assemble it, that is you.

Who is the EU importer?+

The company placing the line on the EU market. It checks the declaration and adds its name and address.
