No DramaBuyer guide · Lab & process

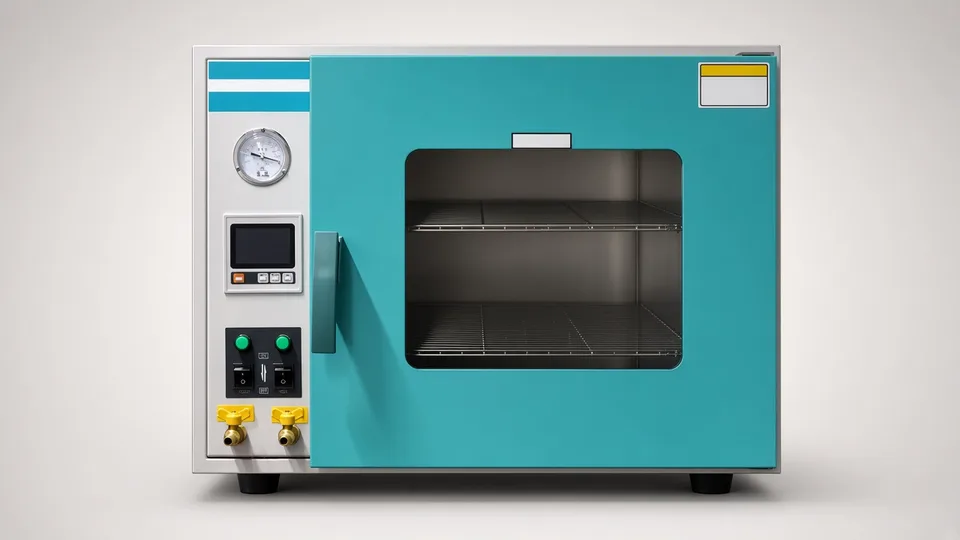

Under vacuum there is almost no air to carry heat, so product warms only where it touches a heated surface, and most lab vacuum ovens heat the walls rather than the shelves your trays sit on.
01
Many benchtop models heat the chamber walls; heat reaches trays slowly by radiation and through the shelf supports. Heated shelves cost more and dry faster and more evenly. Ask which you are quoted.
The display usually reads one sensor near a wall. Ask where it sits, and whether a product or shelf probe can be added.
The oven is often priced without a pump. Ask pump type and speed, whether a cold trap protects it from solvent vapour, and the ultimate vacuum with the chamber empty.
Stainless chamber grade, silicone door seal, shelf count and whether shelves can be moved. A thick glass door lets you see, and adds weight on the hinge.
Nitrogen backfill protects oxygen-sensitive product. Solvent vapours raise an ATEX question for the oven, its controls and the pump.
02
In the DZF series the last digits track chamber volume in litres, roughly. It is not exact: one table lists the DZF-6020 at 25 L.
03
Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.
04
| Require this | A pass looks like |
|---|---|
| Place loggers on each shelf, pull vacuum, and heat to your set point. | Every shelf reaches set point within a spread written into the order, and the time to get there is recorded. |
| Dry a full load of your product for your planned cycle. | End moisture or residual solvent at or below target on samples from every shelf. |
| Pump the empty chamber down, close the valve, and watch the gauge. | Ultimate vacuum at or below the stated figure and pressure rise inside the stated leak rate. |
05
06
A laboratory spray dryer, which dries droplets in seconds.
A laboratory freeze dryer, which removes water from frozen product.
07
We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.
08
Every machine we source in this area is on the Lab & process page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.
Straight answers
Heated shelves against wall heating, sensor count, controller accuracy, door seal, and whether a pump and trap are included. Compare quotes with the same heating path.
Serial against the declaration, chamber volume, heating path, sensor position, shelf temperature map under vacuum, vacuum hold, door seal and pump.
A Declaration of Conformity for that serial number with a technical file behind it, under machinery, low voltage and EMC rules, and ATEX where solvents are dried.
The business placing it on the EU market, often the lab buying direct. Your name goes on the oven or its papers and you check the conformity file.
