Buyer guide · Electronics & assembly

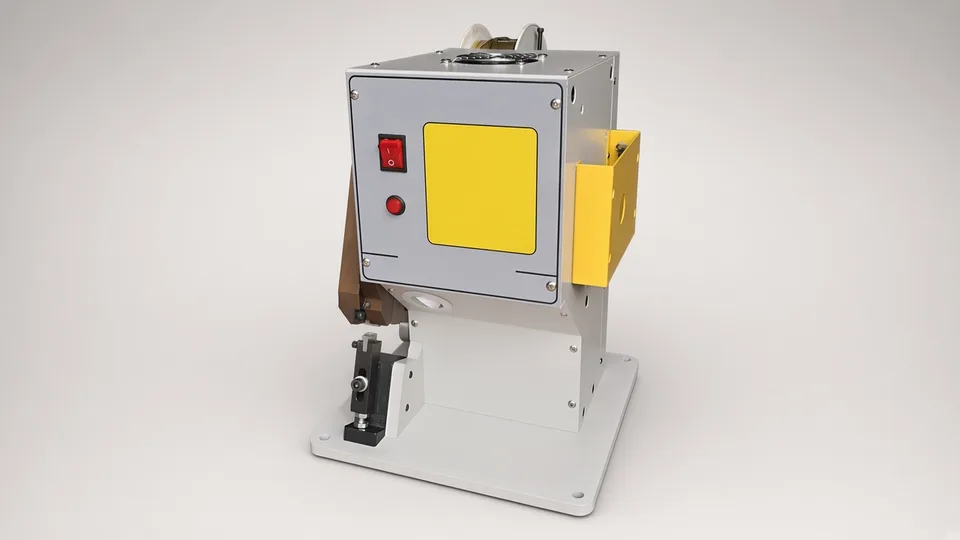

Wire harness crimping machine from China

A fully automatic harness crimper earns its price only if it stays in production, and on a high-mix harness line the time lost changing wire, terminal and seal decides that far more than the rated cycle speed.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

One end or both ends

Single-end machines crimp one end and strip the other. Double-end machines crimp both, with two applicators. Ask which, and whether both ends can take different terminals.

Seal insertion

Sealed automotive connectors need a rubber seal pushed onto the wire before crimping. Of six fully automatic listings we checked, two offered seal insertion. Ask the seal sizes each station takes.

Changeover time

Ask how long a trained operator needs to change wire, terminal reel, applicator and seal, and whether settings are stored per article so the next run starts without trial crimps.

Applicator mount

Many harness makers already own applicators for branded terminals. Ask whether the machine takes the common mini-applicator mounts or only the seller's own design.

Quality monitoring

Crimp force monitoring on each station, and a bad-part cutter or diverter that keeps rejects out of the good bundle.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Your article list: wire sizes, lengths, terminals and seals, with volumes per article.
Articles changed per shift, the number that decides how much changeover time costs.
Terminals by maker and part number, and applicators you already own.
Quality standard required by your customer, usually IPC/WHMA-A-620.
Extra steps wanted: twisting, tinning, marking, or housing insertion.

Turn the claim into a demonstration.

Require this	A pass looks like
Run three of your articles back to back with a timed changeover between each.	Changeover time per article recorded and the first good part produced without trial crimps beyond what was agreed.
Measure crimp height and pull force on samples from both ends.	Every sample inside the terminal maker's specification, results recorded per end.
Feed wire with missing strands and a missing seal.	Both faults detected, the part cut or diverted, and the counter shows the reject.

The documents that must arrive with it.

EU Declaration of Conformity citing 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, plus Low Voltage 2014/35/EU and EMC 2014/30/EU.
Manual in the language of the country of use, with the article programming guide.
Applicator and seal station drawings, and a wear parts list for blades, grippers and punches.

The one people forget. A backup of the article database. Every wire, terminal and seal setting lives in the controller, and a failed board without a backup means re-teaching every article from zero.

When this is the wrong machine.

Buy something else if

Named, not hedged

You crimp small batches of many articles and change terminals every hour.

A wire cutting stripping machine feeding one or two bench terminal crimping presses.

Your wires are heavy battery or power cables.

A dedicated large-cable cut and strip machine with a hydraulic lug crimper.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 14Fourteen marketplace listings for wire harness machines, checked September 2026: two were terminal crimping machines; the others cut and stripped, taped, wound, cut heat-shrink or welded wire.
Listings · 6Six fully automatic cut, strip and crimp listings asked from US$3,580 to US$48,500; the two with seal insertion asked US$5,999 to US$21,500. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Terminal crimping machine. Choose a bench terminal crimping machine when volumes are low and terminals change often.
Wire cutting stripping machine. Choose a wire cutting stripping machine when you only need cut and stripped leads.

Every machine we source in this area is on the Electronics & assembly page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European wire harness crimping machine: what do I give up?+

Mainly changeover software, applicator range and local service. Crimp quality depends on the applicator and can match. Time a changeover before you choose.

What should a harness crimping machine factory audit cover?+

Whether they build the applicators, how they calibrate crimp force monitoring, and whether they can show crimp sections from their own final tests.

What CE documentation does a harness crimping machine need?+

The Declaration of Conformity, the technical file behind it, and a manual in your language covering guarding at the crimp stations.

Who is the EU importer of the machine?+

The business bringing it in. If that is you, your name and address go on it, and you keep the declaration.
