Buyer guide · Electronics & assembly

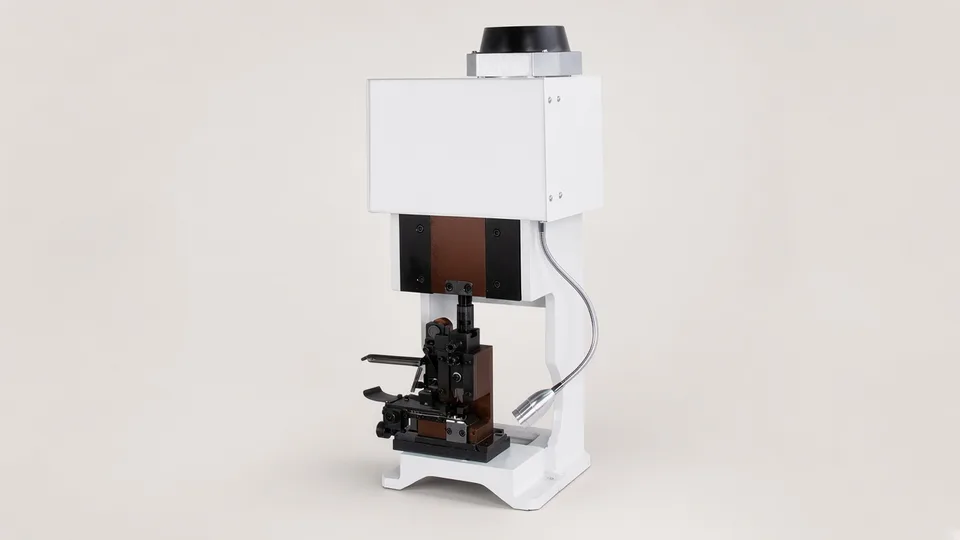

Terminal crimping machine from China

The press is the cheap part of a terminal crimping machine; the applicator that shapes each terminal decides whether the crimp holds, and it has to match your exact terminal and wire, which a listing never shows.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Applicator per terminal

Each terminal family needs its own applicator, side-feed or end-feed. Ask which terminals the quoted applicator fits, whether it is included, and the price of each extra one.

Crimp force

Only one of fourteen automatic listings we checked stated a force, offered in 2, 3 and 4 ton versions. Your largest wire and terminal set the force you need; ask for it in writing.

Crimp force monitoring

A force monitor compares every crimp curve to a good one and flags missing strands or insulation in the crimp. Ask whether it is fitted or only an option.

Crimp height adjustment

Ask how crimp height is set, how fine the steps are, and whether the setting is held when you change applicators.

Bench press or full automatic

A bench press crimps a wire the operator has already cut and stripped. If you also want cutting and stripping in one machine, you are buying a harness crimping machine.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Terminal part numbers and their makers, with the drawing and crimp height specification.
Wire cross-sections and insulation types for each terminal.
Side-feed or end-feed reel, and terminal reel size.
Crimps per shift and number of terminal changes.
The quality standard your customers ask for, often IPC/WHMA-A-620.

Turn the claim into a demonstration.

Require this	A pass looks like
Crimp a counted batch of each of your terminals on your wire.	Crimp height inside the terminal maker's specification on every sample, measured with a crimp micrometer and recorded.
Pull test samples and cut one crimp across for a cross-section photo.	Pull force above the value in your specification or IEC 60352-2, and the section shows no voids or cut strands.
Feed a wire with a few strands removed.	The crimp force monitor rejects the crimp and stops the press.

The documents that must arrive with it.

EU Declaration of Conformity citing 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, plus Low Voltage 2014/35/EU and EMC 2014/30/EU.
Manual in the language of the country of use, with guarding and two-hand or foot pedal operation described.
Applicator drawings and a wear parts list with punch and anvil part numbers.

The one people forget. The applicator specification sheet listing the terminals it is set for. Without it, an applicator used on a similar-looking terminal gives crimps that pass the eye and fail the pull test.

When this is the wrong machine.

Buy something else if

Named, not hedged

You cut, strip and crimp thousands of identical leads every day.

A fully automatic wire harness crimping machine that does all three in one pass.

You crimp large battery or power lugs.

A hydraulic lug crimper with hexagonal dies, not a terminal press.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 14Fourteen marketplace listings for automatic terminal crimping machines, checked September 2026: one stated a crimp force, a semi-automatic bench press in 2, 3 and 4 ton versions asking US$490; one listing stated a price range of US$700 to US$300,000.
Listings · 13Thirteen listings for terminal crimping machines: a bench press with applicator asked US$2,600 to US$2,750, two large-cable harness processors asked US$135,000 to US$205,000, and one listing was a harness component, not a machine. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Wire harness crimping machine. Choose a wire harness crimping machine when you want cut, strip and crimp in one automatic pass.
Wire cutting stripping machine. Add a wire cutting stripping machine to feed a bench press with ready leads.

Every machine we source in this area is on the Electronics & assembly page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European terminal crimping machine: is the gap real?+

In presses, less than the price suggests. In applicators it is larger: tool steel, finish and fit to branded terminals. Test applicators on your terminals before you decide.

What goes on a terminal crimping machine inspection checklist?+

The three tests above, a guard check at the crimp zone, and punch and anvil numbers against the applicator drawing.

What CE documentation does a terminal crimping machine need?+

A Declaration of Conformity, a technical file and a manual in your language. The pinch point at the applicator should be covered in the risk assessment.

Who is the importer?+

The business that brings it into the EU. If that is you, your name and address go on it, and you keep the declaration.
