Buyer guide · Electronics & assembly

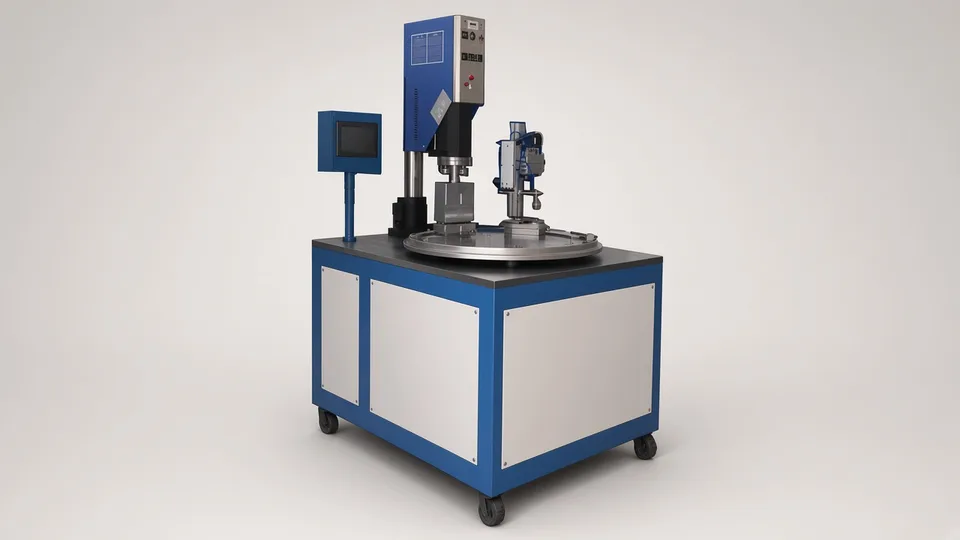

Ultrasonic plastic welder from China

An ultrasonic weld is made by the horn, the fixture and your joint design, and a quote for a 20 kHz welder says nothing about whether those give a strong, sealed joint.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Frequency and power

The 15 kHz listings stated 2,600 to 4,200 W for larger parts; the 35 kHz ones 900 to 1,200 W for small, precise parts. Match frequency to part size first.

Horn and fixture

The horn is tuned to the generator and shaped for your part. Ask whether a horn and fixture are in the price, and the cost of the next set.

Pneumatic or servo press

Servo presses control horn position and speed, and were listed at several times the price of pneumatic bench units.

Weld modes and records

Ask whether it welds by time, energy or collapse distance, and stores each weld's data.

Generator

Ask about frequency tracking and whether the generator is sold alone as a spare.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Part drawings with the joint design.
Polymer grades on both halves, with fillers.
Whether the weld carries load, seals, or both.
Parts per minute and parts per cycle.
Stand-alone or built into a line.

Turn the claim into a demonstration.

Require this	A pass looks like
Weld counted parts from your moulding batch with the offered horn.	Every part welds with no cracks or horn marks.
Pull-test or leak-test a sample of the welds.	All results above the value agreed before the test.
Weld parts from the edge of your tolerance.	Collapse distance stays inside the window written in the offer.

The documents that must arrive with it.

EU Declaration of Conformity under 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, with 2014/35/EU and 2014/30/EU.
Manual stating noise level, guarding and two-hand start.
Horn drawing with its tuned frequency and material.

The one people forget. The horn drawing. Without it, every replacement horn must come from the original supplier.

When this is the wrong machine.

Buy something else if

Named, not hedged

The joint is metal, such as nickel strip on battery cells.

A battery spot welding machine or an ultrasonic metal welder.

The joint is a long seam round a large housing.

Hot plate or vibration welding.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 30Thirty marketplace listings for ultrasonic plastic welding machines, checked October 2026, advertised asking prices from US$200 to US$100,000. Asking prices, not landed cost.
Listings · 13Thirteen of those listings, checked October 2026, named a frequency: eight 20 kHz, four 15 kHz stating 2,600 to 4,200 W where given, and two 35 kHz at 900 to 1,200 W; one named both 15 and 20 kHz.
Listings · 3Three servo welders in the same search, checked October 2026, listed US$8,000 to US$24,583; most bench units US$1,200 to US$3,800.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Battery spot welding machine. Choose it when the joint is metal, such as cell tabs.
Laser soldering machine. Choose it for solder joints, not plastic housings.

Every machine we source in this area is on the Electronics & assembly page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

What is the best ultrasonic plastic welder from China?+

One whose frequency suits your part, with a horn tested on your parts.

Chinese vs European ultrasonic plastic welder: what is the difference?+

Compare weld control, data logging and tested welds on your parts, not watts.

What goes on an ultrasonic plastic welder inspection checklist?+

Horn frequency, fixture fit, guarding, stored weld data and tested welds.

Who is the EU importer of an ultrasonic welder?+

You, when you buy direct. You check the declaration and add your name.
