Buyer guide · Construction

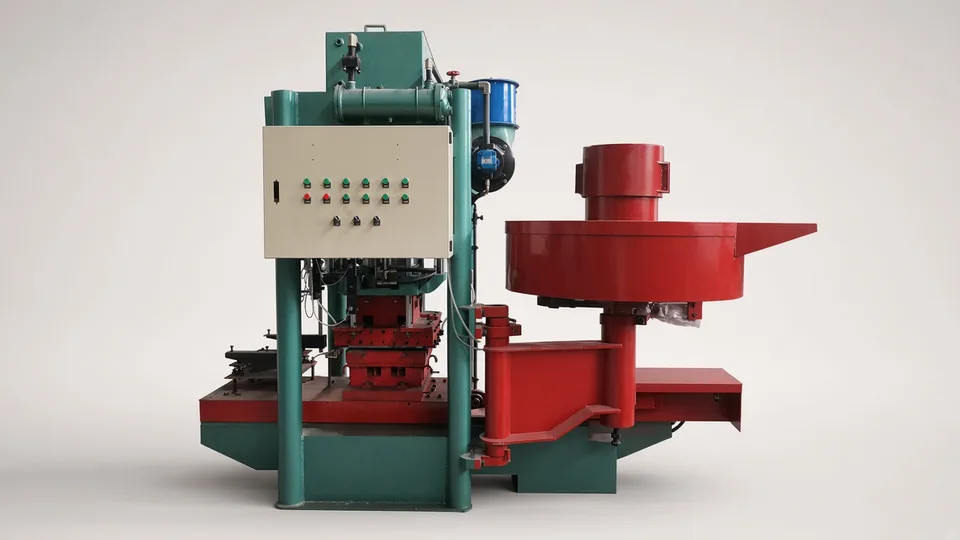

Terrazzo tile machine from China

A terrazzo tile is only half made when it leaves the press, and quotes that stop at the press leave out the double-layer feed and the grinding and polishing line that give the tile its surface.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Press force against tile area

Listings run from about 200 tonnes to 600 tonnes. Divide force by tile area: the same tonnage on a 600 x 600 mm tile presses far less per square centimetre than on a 300 x 300 mm tile.

Single or double layer

Terrazzo normally has a wear layer of marble chips over a cheaper backing layer. Some presses can only fill one layer. Ask for a double-layer feed if your tile needs one.

Water removal

Wet-press machines draw water out of the mix under pressure through filter cloths. Ask how the water is removed and how often cloths are changed.

Station count

Rotary presses fill, press and demould at different stations at once. Single-station presses do each step in turn. Ask the seconds per mould and the tiles per mould.

Grinding and polishing line

Cured tiles are calibrated, ground and polished. Ask whether the offer includes it, how many heads, and the abrasives it uses.

Decode the model code.

Model names here are not a standard code. Work from the cycle and tile size in the listing instead.

40 to 60 seconds per mould: 3,600 / 60 = 60 to 3,600 / 40 = 90 moulds an hour
480 tiles a day at one tile per mould = 60 an hour for 8 hours, the slow end
One 600 x 600 mm tile = 0.36 square metres; 480 x 0.36 = 172.8 square metres a day

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Tile sizes, thickness and chip sizes for the wear layer.
Use: EN 13748-1 for internal terrazzo tiles or EN 13748-2 for external use.
Square metres a day after polishing, not pieces off the press.
Finish: polished, honed or textured.
Water treatment for grinding slurry.

Turn the claim into a demonstration.

Require this	A pass looks like
Press 50 tiles of your largest size with your chips and double layer.	No delamination between layers on tiles cut in half after curing.
Run cured tiles through the offered grinding and polishing line.	Thickness and flatness inside the offer tolerance, with no backing layer showing through.
Send tiles to an independent laboratory for EN 13748 tests.	Flexural strength and abrasion meet the class you will declare.

The documents that must arrive with it.

EU Declaration of Conformity under 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, with 2014/35/EU and 2014/30/EU, for the press and the polishing line.
Hydraulic diagram with the rated and relief pressure.
Mould drawings for each tile size.

The one people forget. The slurry and water plan for grinding. Your permit may require settling and recycling of grinding water, and the polishing line supplier rarely provides the design.

When this is the wrong machine.

Buy something else if

Named, not hedged

You want outdoor paving with a rough, slip-resistant face.

A paver block machine with a face mix feeder.

You want cast-in-place terrazzo floors.

Floor grinding and polishing machines for site work, not a tile press.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 10Ten listings under terrazzo tile machine, checked October 2026: five were terrazzo tile presses or lines priced from US$15,000 to US$50,000 per unit; the rest were roof sheet roll formers, a block machine and a floor grinder.
Listings · 3Three terrazzo press listings, checked October 2026, stated 200 tonnes, 180 to 250 tonnes and 600 tonnes; one stated 40 to 60 seconds per mould and 480 tiles of 600 x 600 mm a day at US$130,000, and one stated it cannot make double-layer tiles.
Arithmetic480 x 0.36 = 172.8 square metres a day from one 600 x 600 mm tile per mould.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Paver block machine. Choose a paver machine if your product is external paving sold by the square metre.
Roof tile making machine. Choose a roof tile machine if you want to sell cement tiles for roofs rather than floors.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European terrazzo tile machine: which to choose?+

Compare double-layer feed, water removal and the polishing line. Test your own chips and write delamination and flatness into the acceptance criteria.

What is in a terrazzo tile machine sourcing guide?+

Price the press and the polishing line together, for one tile size and square metres a day after polishing.

What CE documentation does a terrazzo tile machine need?+

A machinery declaration for the press and for the polishing line. The tiles need a declaration of performance under EN 13748.

Who is the EU importer of a terrazzo tile machine?+

When you buy directly from China, usually you. Your name goes on the machine or its documents.
