Buyer guide · Construction

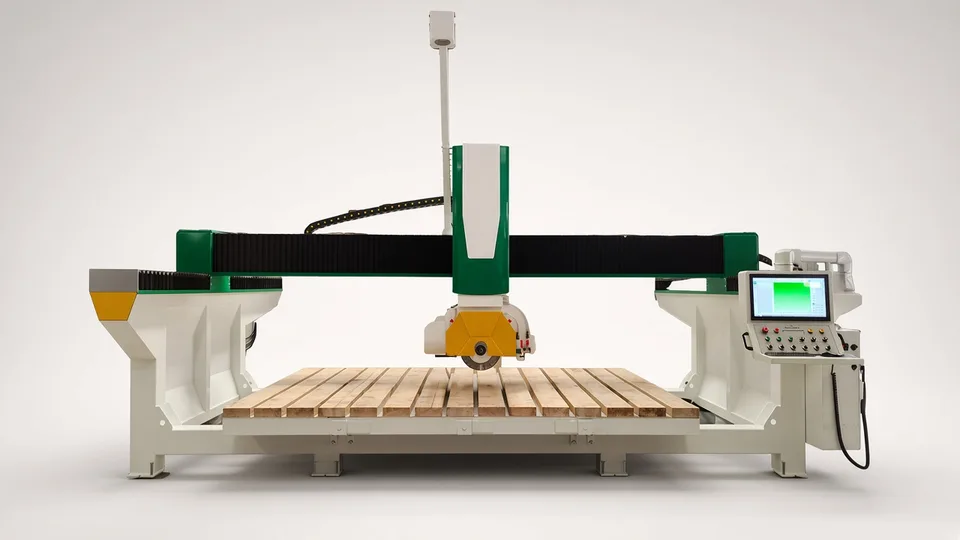

Stone bridge saw from China

A bridge saw is judged on straight, chip free cuts, and the step up to 5 axis only pays if your work really uses mitres, cutouts and shaped edges.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Axes and head tilt

A basic saw tilts the head for bevels. Five axes rotate it for curves, and some add a router spindle.

Blade size and cut depth

Blade diameter sets the maximum cut depth. Ask the depth at 45 degrees as well as at 90.

Bridge and rail structure

Rails on concrete walls or a steel frame. Rigidity decides edge chipping.

Table: fixed, tilting or rotating

A tilting table eases loading; a rotating one cuts any angle.

Controller and camera layout

Ask whether a camera lets you place parts on the slab image.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Largest slab: length, width and thickness, and the stones you cut most.
Your work mix: straight cuts, mitres, sink cutouts, curves.
Foundations: whether the saw needs concrete walls or stands on its own frame.
Water supply, recycling and slurry handling.
Crane or vacuum lifter for loading slabs.

Turn the claim into a demonstration.

Require this	A pass looks like
Cut a full slab of your hardest stone into countertop pieces with a 45 degree mitre.	Mitres close without a gap and edges show no chips larger than the offer allows.
Cut a square of stated size and measure the diagonals.	Diagonals equal within the tolerance written in the offer.
Run a sink cutout if the saw is 5 axis.	Cutout matches the drawing with clean inside corners.

The documents that must arrive with it.

EU Declaration of Conformity with the serial number: 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Foundation drawing with loads and anchor points.
Instructions covering water, blade guarding and noise.

The one people forget. The foundation drawing. Bridge saws on concrete walls need them built before delivery, and a late drawing delays installation by weeks.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your work is carving, lettering or relief.

A stone CNC machine with a router spindle.

You cut blocks into slabs.

A multi blade block cutter or a wire saw. A bridge saw works finished slabs.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 17Seventeen bridge saw listings in one marketplace search, checked October 2026, advertised from US$9,380 for a 3 plus 1 axis saw to US$115,000; eight were 5 axis. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Stone CNC machine. Choose a stone CNC machine when you carve, engrave or shape stone rather than cut slabs to size.
Terrazzo tile machine. Choose a terrazzo tile machine when your product is cast floor tiles, not cut natural stone.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European stone bridge saw: where is the difference?+

In rigidity, head precision and software. Compare edge quality on your stone.

What should a stone bridge saw inspection checklist cover?+

A mitre on your stone, squareness, head tilt accuracy and emergency stops.

What CE documentation does a stone bridge saw need?+

A Declaration of Conformity with the serial number, instructions with noise data, and blade guarding described. Wet cutting also serves the silica dust limits under Directive 2004/37/EC.

Who is the EU importer of a stone bridge saw?+

Usually your company, when you buy direct. Your name goes on the machine or its papers, and you check the conformity file.
