Buyer guide · Construction

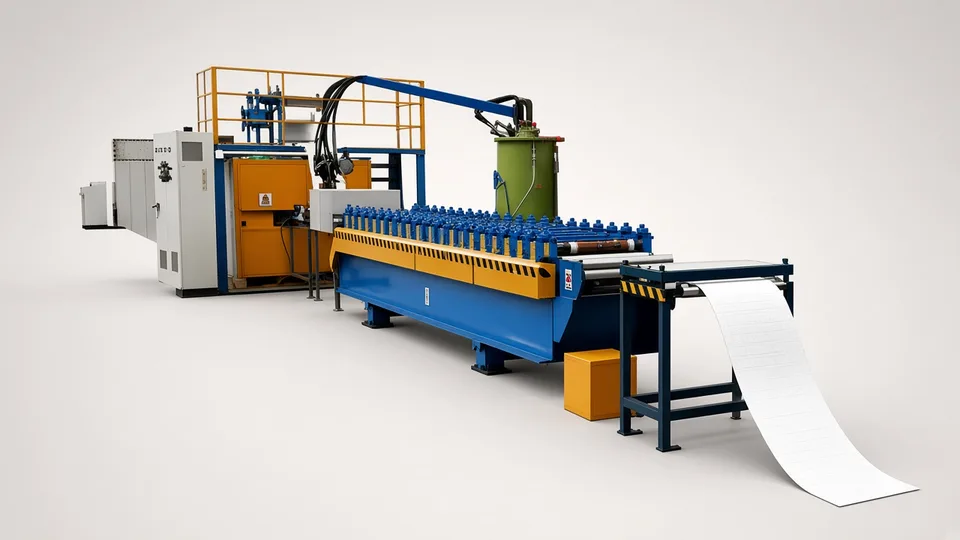

Sandwich panel production line from China

A sandwich panel line is either a small line gluing steel skins to EPS or wool boards, or a continuous foaming line over 100 metres long, and the fire class your customers need decides which.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Core: board laminating or liquid foaming

EPS and wool lines glue boards between skins. PU and PIR lines foam liquid chemicals between them. Different machines, different price.

Roll formers for both skins

Ask whether both skin profiles are included and how long a profile change takes.

Glue or foam dosing

The glue spreader or foaming head decides bond strength. Ask its make and dosing method.

Line speed and length

Laminating listings state 1 to 4 m/min; continuous listings 3 to 7 m/min.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Core material and fire class, which settle the line type.
Panel width, core and skin thickness.
Roof and wall profiles, with drawings of each.
Longest panel you sell.
Annual metres and building length.

Turn the claim into a demonstration.

Require this	A pass looks like
Run your core and skins at rated speed for an hour.	Metres produced match the stated speed, with no edge delamination.
Send cut samples for bond and compression tests.	Results reach the values you will declare under EN 14509.
Measure ten panels from the run.	All inside the offer tolerances, and panels lock together.

The documents that must arrive with it.

EU Declaration of Conformity with the serial number: 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
For PU and PIR lines, the foaming machine and extraction documents.
Roll former drawings for every profile quoted.

When this is the wrong machine.

Buy something else if

Named, not hedged

You want cement panels with a foam bead core for walls in housing.

An EPS panel production line, which casts cement panels in moulds.

You only need single skin roof and wall sheet.

A roofing roll forming machine, without the core, glue or foam system.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 2Two listings for EPS and rock wool laminating lines, checked October 2026, advertised US$22,500 to US$38,000, with 1 to 4 m/min speed and about 34 to 40 m line length. Asking prices, not landed cost.
Listings · 2Two continuous PU, PIR and wool line listings, checked October 2026, advertised US$1,000,000 to US$1,500,000, at 3 to 7 m/min and 100 to 118 m long.
ArithmeticUS$1,000,000 / US$38,000 = about 26, so the cheapest continuous line cost about 26 times the dearest laminating line.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

EPS panel production line. Choose an EPS panel line for cement wall panels cast in moulds.
Roofing roll forming machine. Choose a roofing roll former for single skin sheet with no core.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European sandwich panel production line: which fits?+

For EPS and wool laminating, Chinese lines cover much of the market. For continuous PU, compare the foaming head, belt press and service closely.

What should a sandwich panel production line inspection checklist cover?+

Profiles against drawings, glue or foam dosing, cutter accuracy and a timed run on your materials.

What CE documentation does a sandwich panel production line need?+

A machinery declaration for the line. The panels need their own route under EN 14509.

Who is the EU importer of a sandwich panel production line?+

Usually your company, when you buy direct. Your name goes on the machine or its papers, and you check the conformity file.
