Buyer guide · Construction

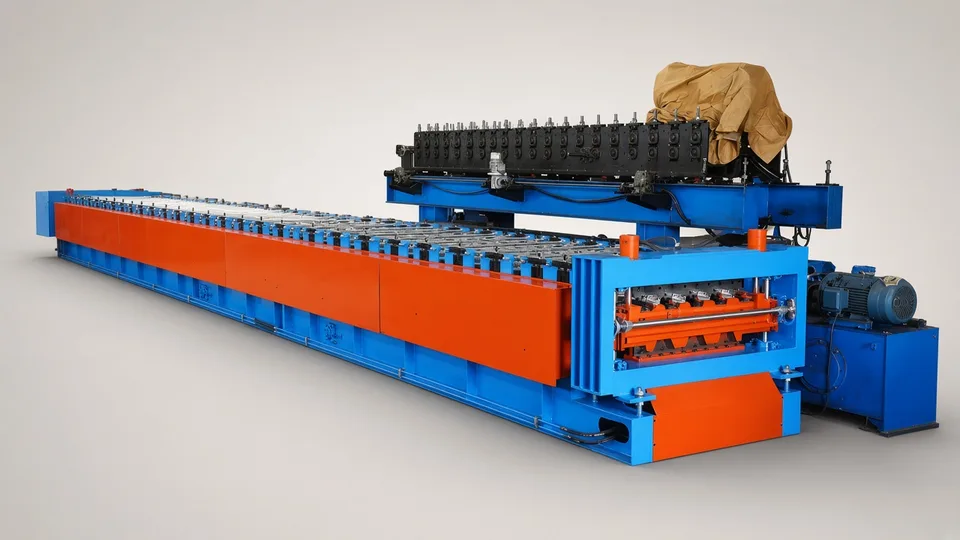

Roofing roll forming machine from China

A roofing roll former makes one profile, cut into its rollers, so the drawing is the order, and a slightly wrong drawing gives sheet that will not overlap what your market uses.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Profile drawing and tolerance

Send every dimension and have the factory sign it back. Rib height, pitch and cover width must match roofs already built.

Roller steel and stations

Ask station count, roller steel and plating. Too few stations mark or twist the sheet.

Coil range

Ask the thickness, yield strength and coating the rollers were designed for.

Cutting

A stop and cut shear is cheaper and slower than a flying cutter.

Uncoiler and run out

A manual decoiler and a short table limit coil weight and sheet length.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

The exact profile drawing, or a physical sample of the sheet.
Coil material, thickness, width, coating and yield strength.
Longest sheet you sell and your transport limit.
Coil weight, which sizes the decoiler.
Any second profile, which means a double layer machine or a second line.

Turn the claim into a demonstration.

Require this	A pass looks like
Roll ten sheets from your own coil in the factory.	Profile dimensions inside the signed drawing tolerance, with no marks on the coating.
Overlap two formed sheets side by side.	They lap and fix on the ribs as your market sheet does.
Cut ten sheets to one length.	All inside the length tolerance in the offer.

The documents that must arrive with it.

EU Declaration of Conformity with the serial number: 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Roller drawings with station count and roller steel, and the signed profile drawing.
Hydraulic and electrical diagrams in the language of use.

The one people forget. The product file. Metal roofing sheet has its own product standard, EN 14782 for self supporting sheet, and the sheet maker must meet it. The machine does not make the sheet CE marked.

When this is the wrong machine.

Buy something else if

Named, not hedged

You need insulated roof panels.

A sandwich panel production line, which includes roll forming for the skins.

You sell many profiles in small quantities.

Buy formed sheet from a local roll former until one profile has steady volume.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 12Twelve listings for trapezoidal and standing seam roofing roll formers, checked October 2026, advertised from US$6,000 to US$16,500 per set. None stated coil thickness or speed on the listing card. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Sandwich panel production line. Choose a sandwich panel line when your roof and wall sheet needs an insulating core.
Roof tile making machine. Choose a roof tile machine when your market roofs with concrete tiles instead of metal sheet.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European roofing roll forming machine: where is the gap?+

In roller design and hardness, and the profile match. For common profiles Chinese lines are widely used.

What should a roofing roll forming machine inspection checklist cover?+

Profile against the signed drawing, overlap, coating marks, cut length and guards.

What CE documentation does a roofing roll forming machine need?+

A Declaration of Conformity with the serial number, and instructions covering guards at the in running rollers and the shear.

Who is the EU importer of a roofing roll forming machine?+

Usually your company, when you buy direct. Your name goes on the machine or its papers, and you check the conformity file.
