Buyer guide · Construction

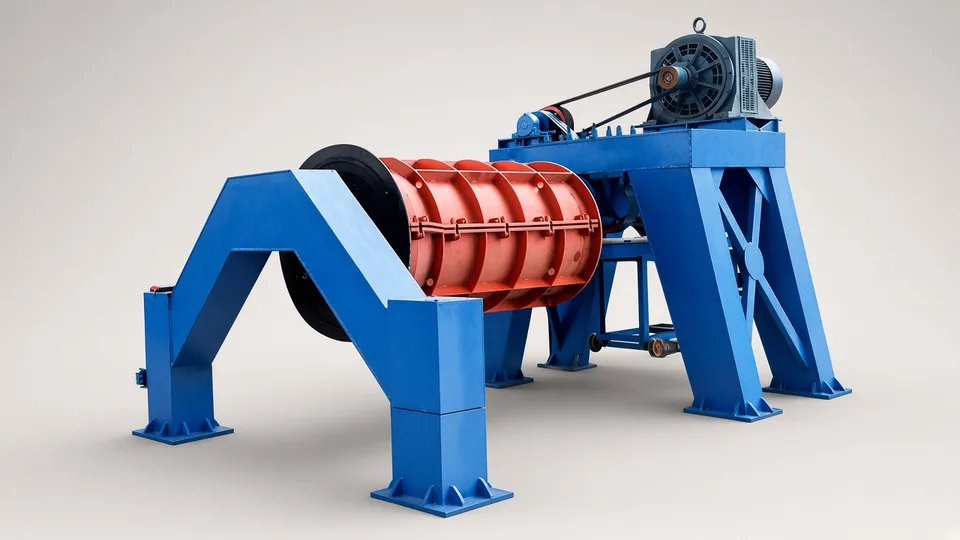

Concrete pipe making machine from China

A concrete pipe machine is cheap to list and expensive to run, because every diameter, length and joint profile needs its own mould, and the forming method decides which pipes you can sell.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Forming method

Suspension roller machines compact a dry mix inside a spinning mould. Centrifugal machines spin a wetter mix. Vertical vibration and radial press machines stand the mould upright. Each gives a different wall density and joint quality. Ask which one, and why for your pipe.

Moulds in the price

Ask how many moulds the offer includes, for which diameters, lengths and joints, and the price of each extra mould. Compare offers only after adding the moulds you need.

Joint profile

Spigot and socket with a rubber ring, or a flush joint with mortar. Sealed joints need rings made to EN 681-1 and a mould machined to match them.

Demoulding and cycle

Ask when the pipe leaves the mould. If it stays on until it can stand, mould count sets daily output, not machine speed.

Cage handling

Reinforced pipe needs a welded steel cage for each piece. Ask whether a cage welder is in scope or assumed to exist.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Diameters, lengths and wall thicknesses, and the daily count of each.
Reinforced or unreinforced, with the strength class you will declare under EN 1916.
Joint type and the seal you will buy.
Mix design and aggregate size, since dry-mix roller forming needs a stiff, well-graded mix.
Crane capacity and curing space for the heaviest pipe.

Turn the claim into a demonstration.

Require this	A pass looks like
Form your largest diameter with your mix, on video, and time it from empty mould to demoulded pipe.	The time matches the cycle in the offer, measured by clock, not estimated.
Send cured pipes to an independent laboratory for a crushing test.	Crushing load reaches the class you will declare under EN 1916.
Join two pipes with the offered seal and pressure test the joint.	No leak during the joint tightness test described in EN 1916.

The documents that must arrive with it.

EU Declaration of Conformity under 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, plus 2014/35/EU and 2014/30/EU.
Mould drawings with ring and spigot dimensions and their tolerances.
Instructions in the language of use, including guarding for the rotating mould.

The one people forget. The joint dimension drawing. Seal makers need it to supply a ring for your spigot, and without it the first pipes cannot pass a joint test.

When this is the wrong machine.

Buy something else if

Named, not hedged

You mainly need manholes and chambers, not pipe runs.

A vertical vibration machine with manhole moulds, or buying manhole rings from a precaster.

You need small drainage pipe below the smallest bore listed.

Plastic pipe extrusion, or buying pipe in, since small bores compete with plastic.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 4Four listings for suspension roller and related pipe machines, checked October 2026, advertised from US$3,000 to US$16,800 per unit, mostly without stating the moulds included. These are asking prices, not landed cost.
Listings · 2Two of those listings, checked October 2026, stated bores of 200 to 2,500 mm and 300 to 2,400 mm, and lengths of 1 to 5 m.
Listings · 2Two listings stated forming speed: 3 to 5 minutes per pipe on a roller machine, and 4 to 5 pipes an hour on a centrifugal one, checked October 2026.
Arithmetic3 to 5 minutes per pipe gives 60 / 5 = 12 to 60 / 3 = 20 pipes an hour at most, if a mould is free for every pipe.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Concrete batching plant. Choose a batching plant first if you have no steady concrete supply for the pipe line.
Concrete block making machine. Choose a block machine if your local market buys masonry units rather than drainage pipe.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

What is the best concrete pipe making machine from China for sewer pipe?+

The method that passes the EN 1916 crushing and joint tests on your diameter. For sealed sewer joints that usually means a machine that forms an accurate spigot.

What goes on a concrete pipe making machine inspection checklist?+

Mould roundness and joint dimensions, bearing condition on rollers, guarding of rotating parts, the timed cycle, and cured samples sent for a crushing test.

What CE documentation does a concrete pipe making machine need?+

A machinery Declaration of Conformity and instructions. The pipes need their own declaration against EN 1916; the machine's marking does not cover them.

Can I import a concrete pipe making machine to the EU myself?+

Yes. You become the importer, your name goes on the machine or its papers, and you check the declaration matches the plates.
