Buyer guide · Industrial cleaning

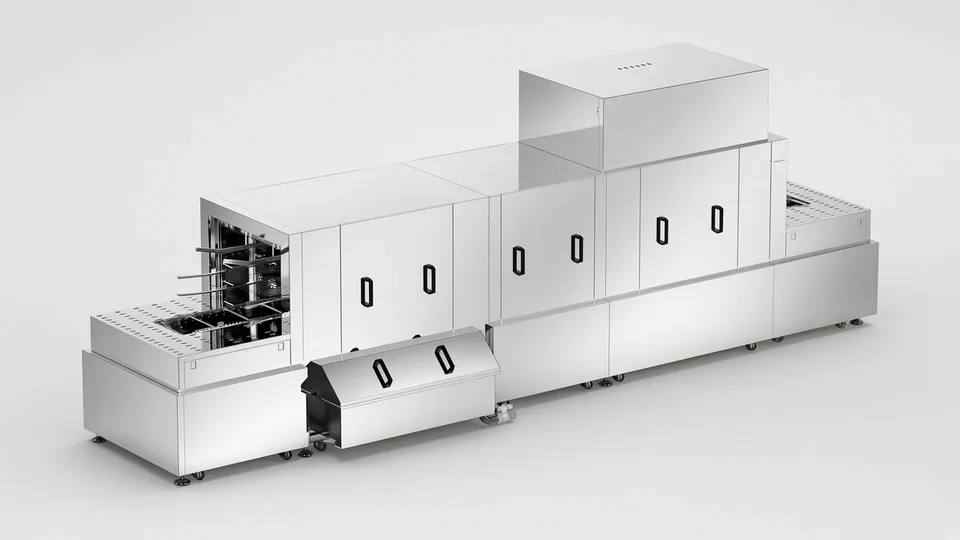

Tunnel washing machine from China

In a tunnel washer the belt speed is also the wash time, so a quote that promises more output by running the belt faster has shortened every stage, and the only honest route to more output at the same result is a longer tunnel.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Zone lengths

Time in each zone equals zone length divided by belt speed. Ask the length of prewash, wash, rinse, blow-off and drying zones in millimetres, not only the overall machine length.

Conveyor type and width

Wire mesh belt, chain with fixtures, or rollers. Small parts fall through coarse mesh; tall parts need spray from the sides as well as above and below.

Carry-over between zones

Parts drag wash liquid into the rinse. Drip sections and curtains between zones keep the rinse clean; without them the rinse turns into a second wash tank.

Heat source per tank

Each heated zone has its own tank. Electric, steam or gas heating changes running cost and what utilities you must bring to the machine.

Drying

Air knives blow water off; a heated dryer evaporates the rest. Cupped parts that hold water need orientation or tilting, not just more air.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Footprint and height of the largest part on the belt, and the spacing between parts.
Parts per hour and the belt speed your line runs at.
Which stages you need: prewash, wash, rinse, rust protection, blow-off, drying.
Floor length available, inlet and outlet heights, and the conveyors either side.
Heat source you can supply and where vapour will be ducted.

Turn the claim into a demonstration.

Require this	A pass looks like
Measure belt speed and each zone length on the machine, then run your parts at the contracted rate.	Measured time in each zone matches the arithmetic in the contract, and parts meet the agreed cleanliness check.
Sample the rinse tank after an hour of production.	No foam and a conductivity or concentration reading inside the agreed limit, showing carry-over is controlled.
Check parts at the exit, including cups and recesses.	Dry to the level written in the contract, with no standing water in any cavity.

The documents that must arrive with it.

EU Declaration of Conformity for the serial number under 2006/42/EC or, from 20 January 2027, Regulation (EU) 2023/1230, with 2014/35/EU and 2014/30/EU.
Layout drawing with zone lengths, tank volumes, conveyor height and utility connection points.
Manual in the language of use, including guarding at the belt inlet and outlet.

The one people forget. The layout drawing with inlet and outlet heights. A tunnel sits between two other processes, and a mismatch in conveyor height is otherwise found on installation day.

When this is the wrong machine.

Buy something else if

Named, not hedged

You mean a laundry tunnel washer for hotel linen or workwear.

A continuous batch washer from a laundry equipment supplier. It shares the name, not the machine.

You wash small mixed batches that arrive at irregular times.

An industrial parts washer. A tunnel held hot all day for a few batches wastes energy and floor.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 13Thirteen listings under tunnel washer on one marketplace, checked September 2026: four were car washes, one a laundry tunnel and one a high pressure jetting unit.
Listings · 7The seven tunnel washers in that set built for crates, trays, baskets or industrial parts asked US$3,700 to US$12,000. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Crate washing machine. Choose the crate washer when everything on the belt is a crate or tray and label removal and hygiene drive the design.
Aqueous parts cleaning line. Choose the aqueous line when parts need immersion stages and a measured cleanliness limit, not spray on a belt.

Every machine we source in this area is on the Industrial cleaning page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European tunnel washing machine: what should I compare?+

Zone lengths, carry-over control between zones and dryer design. Two tunnels of equal length can split it very differently.

What goes on a tunnel washing machine inspection checklist?+

Belt speed measured, zone lengths measured, rinse sampled after an hour, parts checked dry at the exit, inlet and outlet guarding.

What EU compliance applies to a tunnel washer?+

The machinery rules in force at delivery, low voltage and EMC. Where it joins other machines, the integrated line may need its own declaration.

Who is the EU importer of a tunnel washer?+

The buyer, when buying direct from China. You check the documents exist and put your name and address on the machine or its papers.
