Buyer guide · Woodworking

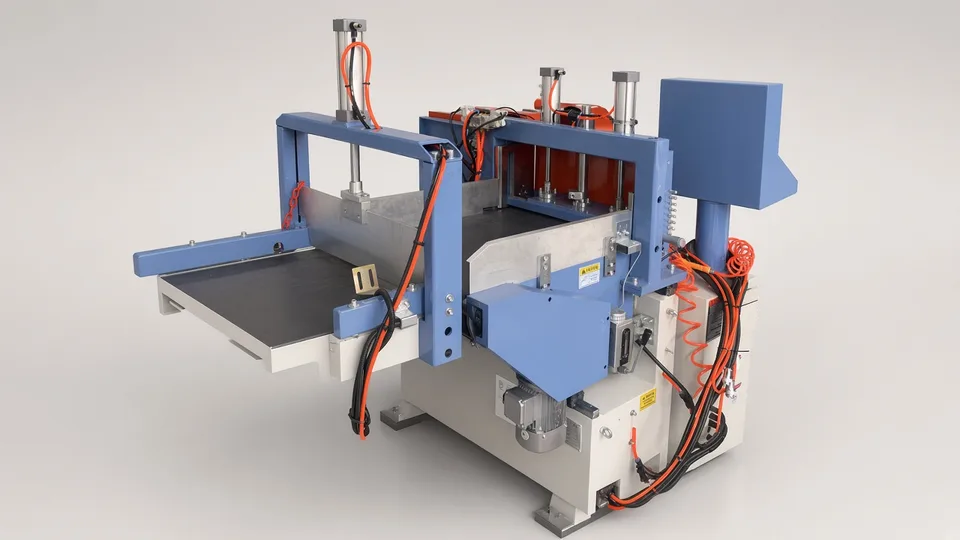

Finger joint production line from China

A finger joint line is sold by the length in its title, but the joint holds on end pressure, and one fixed press force spreads thinner over a wider section.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Shaper: one pass or two

Short blocks are cut on one end, turned and cut again. Ask whether the line has one shaper with a turning table or two shapers.

Press length and end force

Title length and jointed length in the spec table can differ. The cylinder gives one fixed force, so a wide, thick section gets far less pressure per square millimetre.

Glue application

Brush, comb or spray. Ask how glue reaches both faces of the fingers.

Shortest block and cut-off saw

Shortest block decides how much offcut you can use; the end saw decides whether lengths are square.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Species, moisture content, and rough or planed blocks.
Smallest and largest cross section you will joint.
Shortest block you want to use and finished length you sell.
Glue type and its pressing time.
Joinery or load-bearing use.

Turn the claim into a demonstration.

Require this	A pass looks like
Joint your blocks at the largest section, full length.	Stated end pressure on the gauge and no stepped joints on counted boards.
Break cured joints in bending.	Wood fails beside the joint on most samples, not the glue line.
Feed the shortest block the offer states.	No jams over a counted run of blocks.

The documents that must arrive with it.

EU Declaration of Conformity for the whole line, 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Wiring diagrams with 2014/35/EU and 2014/30/EU references.
Extraction port list with the airflow each shaper needs.

The one people forget. The layout drawing with in-feed and out-feed lengths. A 6 metre press needs more floor than 6 metres.

When this is the wrong machine.

Buy something else if

Named, not hedged

You only need boards straightened and sized.

A four side moulder, which planes all faces but joins nothing.

Your joints must carry structural load in glulam or beams.

A line specified against your structural testing plan. A joinery line leaves that proof to you.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 14Fourteen marketplace listings for finger joint production lines, checked October 2026, advertised from US$5,000 to US$95,000. Asking prices, not landed cost.
Listings · 1One automatic line titled 6 metres, checked October 2026, stated a 2,500 mm maximum jointed length, 30 to 150 mm width, 100 mm shortest block and 3,500 kg maximum hydraulic thrust.
Arithmetic150 x 30 = 4,500 square mm: 3,500 / 4,500 = about 0.78 kg per square mm. 30 x 30 = 900 square mm: 3,500 / 900 = about 3.9, about five times more.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Four side moulder. Choose a four side moulder to plane jointed blanks to a finished profile.
Wood planer. Choose a planer when blocks arrive rough and need sizing first.

Every machine we source in this area is on the Woodworking page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Finger joint production line inspection checklist: what matters most?+

End pressure at your largest section, straight joints, and samples breaking in the wood.

Chinese vs European finger joint line: where does the gap show?+

Press rigidity, cutters and block handling. Compare boards per shift at your section.

What CE documentation does a finger joint line need?+

One Declaration covering the assembled line, with manual and wiring diagrams in your language.

Who is the EU importer when I buy the line direct?+

You are. Your name goes on the papers and you check the technical file exists.
