Buyer guide · Woodworking

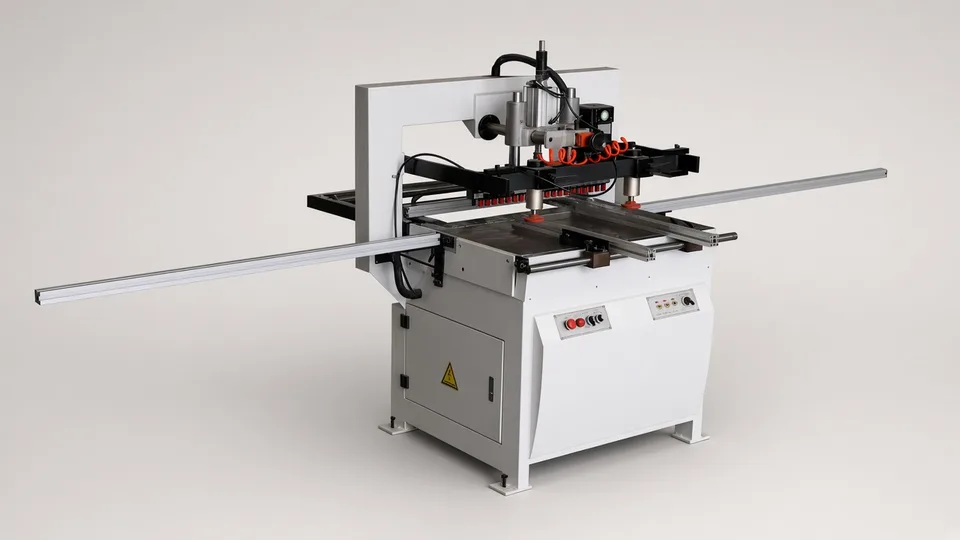

Dowel drilling machine from China

The words dowel drilling machine cover three different machines, a manual row driller, a through-feed edge driller and a drill, glue and insert machine, so two quotes under the same name can be for different jobs.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Drill only, or drill, glue and insert

A drill-only machine leaves gluing and dowel driving to people. An inserting machine glues the hole and drives the dowel in the same cycle. Say which in the enquiry.

Edge or face drilling

Dowel joints need holes in the panel edge and matching holes in the face of the mating part. Ask which the machine drills, and whether one set-up does both.

Working length and thickness

Inserting machines often have a short maximum working length. A part longer than that must be drilled elsewhere.

Positioning

Manual stops, sensor detection of the panel end, or programmed positions. Programmed positions let hole patterns change without moving stops.

Glue dosing and dowel feed

On inserting machines ask how glue is metered per hole, the dowel diameters and lengths the feeder takes, and how blocked feeds are cleared.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

The joint: dowel diameter and length, and the hole depth in edge and face.
Whether you want holes only, or holes glued and dowels driven.
Your longest and thickest part, and the smallest.
Hole patterns per part, and how often they change.
The glue type you use for dowels.

Turn the claim into a demonstration.

Require this	A pass looks like
Drill and, if ordered, glue and insert dowels on your longest edge and your thinnest panel.	Every hole centred in the thickness within your tolerance, every dowel at the drawing height, no glue on the face.
Assemble the joint with the mating part drilled on the face.	The joint closes by hand pressure without the dowel splitting the panel, and the faces are flush.
Run the dowel feeder until a hopper is used up.	No missing or double dowels, with a count written in the report.

The documents that must arrive with it.

EU Declaration of Conformity naming 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, plus 2014/35/EU and 2014/30/EU.
Instructions in the language of use with guarding, noise data and the air supply.
The list of dowel sizes the feeder takes, and the glue system cleaning procedure.

The one people forget. The dowel size list. A feeder built for one dowel diameter needs new parts for another, and without the list in the contract you learn this when your supplier changes dowels.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your panels join with cam connectors and shelf pins, and dowels are a minor part.

A multi-row boring machine, which drills the full hole line for connectors and pins.

Every part needs holes on several faces at production volume.

A six-sided drilling machine, and insert dowels at assembly.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 3Three listings titled for dowel holes, checked October 2026: a two-row manual driller at US$2,060 to US$2,260, a through-feed edge driller at US$5,000 to US$8,000, and a drill, glue and insert machine at US$10,000 to US$70,000. Asking prices, not landed cost.
Listings · 2Two specifications, checked October 2026: the edge driller stated 3 to 15 mm holes up to 35 mm deep in 10 to 50 mm panels; the inserting machine stated 30 to 60 mm dowels, 1,000 mm maximum length and 45 mm maximum thickness.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Wood boring machine. Choose a multi-row boring machine when connector and shelf pin rows are most of your drilling.
Six sided drilling machine. Choose it when volume justifies drilling every face in one automatic pass.

Every machine we source in this area is on the Woodworking page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

What is the best dowel drilling machine from China for panel furniture?+

Start from the joint. If people glue and drive dowels today and that is the bottleneck, price an inserting machine. If drilling is the bottleneck, a through-feed edge driller is enough.

Chinese vs European dowel drilling machine: what should I test?+

Hole centring on your thinnest panel, and on inserting machines the feeder and glue dosing over a full hopper.

What goes on a dowel drilling machine inspection checklist?+

Centred holes on long and thin parts, an assembled joint, a hopper run without missed dowels, and the dowel size list.

Who is the EU importer of a dowel drilling machine?+

The business that places it on the EU market, usually the buyer. Its name goes on the machine or papers, and it checks the Declaration of Conformity.
