Buyer guide · Plastics & molding

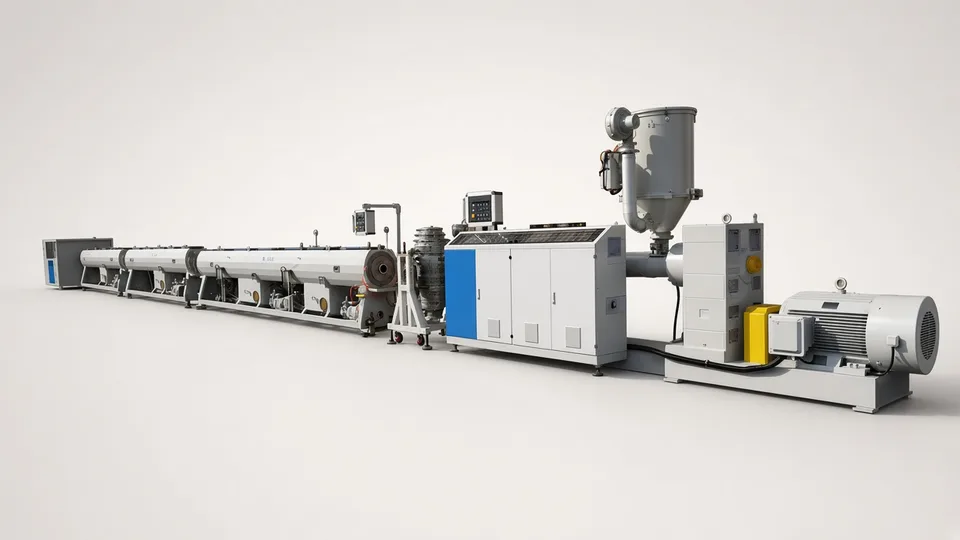

Plastic pipe extrusion line from China

A pipe line is built around one polymer and a band of diameters, and a listing that promises PVC, PE and PPR on one line at one price is describing several lines.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Extruder for the polymer

Rigid PVC dry blend usually runs on a conical twin screw. PE and PPR run on a single screw. Ask which extruder is in the quote and for which polymer.

Diameter band and tooling

Each diameter needs its own die parts and calibration sleeve. Ask which sizes are included and the price of each additional size.

Vacuum tank, cooling and haul-off

Thick-walled PE pipe needs long cooling so it stays round. Ask for vacuum tank and spray tank lengths, and how many caterpillar tracks the haul-off has.

Wall control and cutting

Ask whether an ultrasonic wall gauge is fitted, and whether the cutter is a saw or a chipless cutter.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Polymer and grade: PVC-U, PE or PPR.
Every diameter and wall or pressure class you will make.
Output in kilograms per hour or meters per minute.
Pipe standard your customers require.
Hall length, cooling water and power.

Turn the claim into a demonstration.

Require this	A pass looks like
Run one diameter in your compound to steady state.	Output per hour matches the offer for that size.
Measure wall thickness around cut sections.	Minimum and average wall inside your pipe standard.
Check ovality on pipe from the end of the line.	Ovality inside the value your standard sets.

The documents that must arrive with it.

EU Declaration of Conformity for the line under 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027.
Standards list, including the EN 1114 series for extrusion equipment.
Die and calibration sleeve drawings for each size.

The one people forget. Sleeve drawings, needed to add sizes later without the original supplier.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your product is a window profile, cable trunking or decking.

A plastic profile extrusion line.

You need pressure pipe certified to a product standard and have no lab.

Budget for testing equipment and certification first; the line alone does not certify pipe.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 11Eleven marketplace listings for pipe extrusion lines, checked September 2026, advertised FOB asking prices from US$1,000 to US$225,000. Asking prices, not landed cost.
Listings · 6Six of those listings, checked September 2026, named PVC together with PE or PPR on one listing.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Plastic profile extrusion line. Choose it for window, trunking or trim profiles.
Plastic extrusion line. Read it if your product is not settled yet.

Every machine we source in this area is on the Plastics & molding page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

What is the best plastic pipe extrusion line from China?+

One built for your polymer and diameter band, with cooling long enough for your thickest wall.

Chinese vs European plastic pipe extrusion line: which is better?+

For non-pressure pipe, Chinese lines are common. For large pressure pipe, compare gravimetric dosing and wall control, and quote a used European line too.

What goes on a plastic pipe extrusion line inspection checklist?+

Extruder type, heater zones, vacuum level, haul-off grip, cutter guard, and wall and ovality on your pipe.

Does EU compliance for a pipe line cover the pipe?+

No. The line needs its Declaration of Conformity; the pipe is assessed against its own product standard, such as EN 12201 for PE water pipe or EN ISO 1452 for PVC-U.
