Buyer guide · Pet food

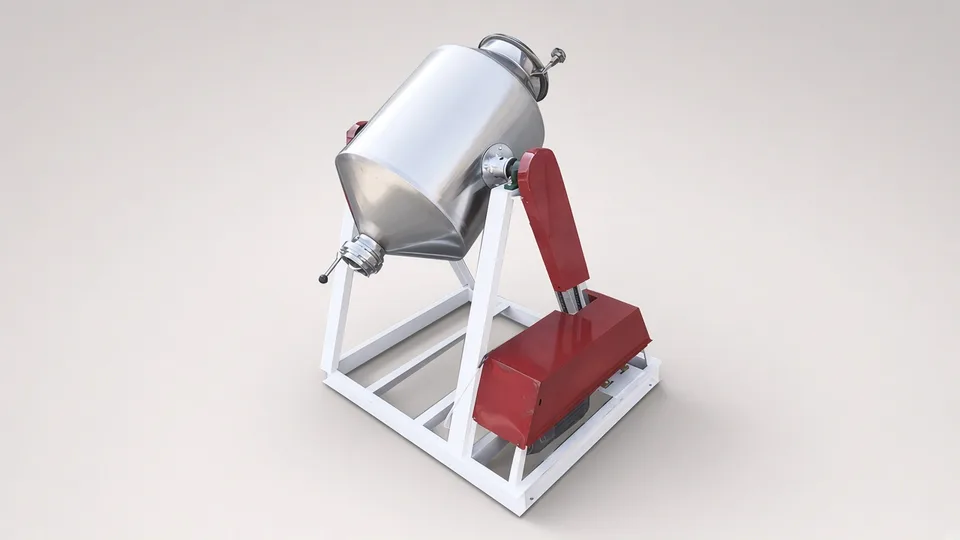

Kibble coating drum from China

A coating drum is a simple rotating tube, and the hard part is invisible: holding the fat and palatant dose steady while the kibble flow into it rises and falls.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

How the dose follows the kibble

Better drums weigh the incoming kibble and adjust the liquid pump to match. A fixed-speed pump turns every surge from the dryer into a fat error. Ask what measures the flow.

Spray or disc

Nozzles block with cold fat; spinning discs need the right drum speed. Ask how the liquid is applied and kept warm up to that point.

Powder palatant dosing

A dry palatant after the fat needs a second feeder with its own control, often an extra line on the quote.

Drum or vacuum coater

A drum coats the surface. Deep liquid inclusion needs vacuum, which is a batch machine at a different price.

Contact material and cleaning

The listing we read stated no stainless grade. Fat builds up on the flights; ask for grade, finish and safe access for cleaning.

Decode the model code.

In the one series we read, the number is the drum diameter in centimetres. It says nothing about fat dose accuracy.

SYPG65 = 650 mm diameter, 2.5 m long; SYPG135 = 1,350 mm diameter, 3.5 m long.
The same series spans 1.5 to 12 t/h, so the smallest and largest differ by 12 / 1.5 = 8 times in rated throughput.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Kibble throughput in tonnes per hour leaving your dryer, with its peak.
Fat and palatant levels as a percentage of kibble weight, liquid, powder or both.
Fat type and the temperature that keeps it liquid.
How fragile your kibble is, since tumbling makes fines.
Whether you need a surge hopper to steady the feed.

Turn the claim into a demonstration.

Require this	A pass looks like
Your kibble and fat run for thirty minutes, with the feed rate stepped up and down.	Samples every five minutes, extracted for fat, all within your written tolerance.
Fines measured by sieving kibble before and after the drum.	Fines added by the drum no greater than the figure agreed in the offer.
Drum stopped, emptied and cleaned by one operator.	No fat residue on the flights or spray bar after the cleaning time stated in the manual.

The documents that must arrive with it.

EU Declaration of Conformity for drum and dosing system: 2006/42/EC, or Regulation (EU) 2023/1230 from 20 January 2027, plus the electrical directives.
Material declarations for drum shell, flights, spray bar and pump, answering the Regulation (EC) 1935/2004 contact question.
Calibration procedure for the kibble flow meter and liquid pump.

The one people forget. The flow meter calibration record. Without it, nobody can show that the fat level printed on your bag matches what the drum applied.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your recipe needs more liquid than a surface coat holds without turning greasy.

A vacuum coater, which draws liquid into the kibble under reduced pressure.

You coat small batches of treats or several recipes an hour.

A batch pet food mixer with liquid addition, cleaned between batches.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 1One rotary fat coating drum series for feed and pet food, checked September 2026: five models, 1.5 to 12 t/h, drums 650 mm by 2.5 m to 1,350 mm by 3.5 m, 2.2 to 5.5 kW drum motor, pump speed PLC-linked to feed rate, no stainless grade or fat level stated, advertised US$2,000 to US$20,000. Asking prices.
Arithmetic12 / 1.5 = 8 times throughput between the smallest and largest model in that series.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Pet food mixer. Choose a pet food mixer if you coat in batches or need to blend several ingredients, not only apply liquid.
Pet food extrusion line. Choose the full extrusion line if you are making the kibble itself, where the coater is one station among several.

Every machine we source in this area is on the Pet food page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European kibble coating drum: where is the gap?+

Mostly the dosing control and flow measurement, less the drum. Name the load cell and pump makes in the contract.

What should a kibble coating drum inspection checklist hold?+

Shell material and welds, spray bar or disc, pump and flow meter makes, fat line heating, drive guarding, and a fat test at stepped feed rates.

Does the drum have to meet feed law?+

The feed hygiene rules in Regulation (EC) 183/2005 bind your business, not the drum. If the fat or palatant is of animal origin, the animal by-products rules in Regulation (EC) 1069/2009 also apply to your plant.

Who is the EU importer of a kibble coating drum?+

Whoever places it on the EU market, often the buyer. That name goes on the machine or papers, and the importer checks the documents match the drum.
