Buyer guide · Electronics & assembly

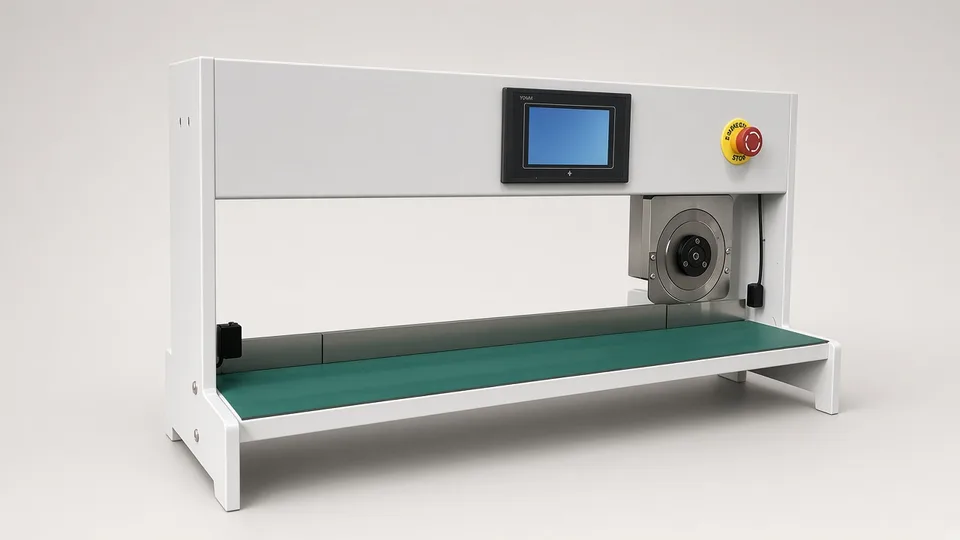

PCB depaneling machine from China

A depaneler can crack a ceramic capacitor near the board edge without leaving a mark, so the risk is a field failure months later, and the method you buy has to match how your panels were designed.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Method: blade, router, punch or laser

V-cut blade separators only work on V-scored panels. Routers cut tab-routed panels of any shape. Punch dies are fast but need a die per board. Lasers cut without contact but burn a small edge. Of fifteen listings, six were pneumatic blade units, four routers and four lasers.

Stress on the board

Bending and blade pressure strain the board near the cut. Ask whether the supplier has measured it with strain gauges, following IPC/JEDEC-9704, on a board like yours.

Dust and fume

Routers throw glass fibre dust; lasers make fume. Ask the extraction airflow the machine needs and whether a filter unit is in the price.

Fixtures per board

Routers and punches need a fixture or die per board type. Ask the cost and lead time of each new fixture, not only the machine.

Offline or inline

Offline machines are loaded by hand. Inline routers take panels from the line. Ask about the conveyor height and communication with the machines around it.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

How your panels are joined: V-score, tabs with mouse bites, or both.
Closest component to the cut line, especially ceramic capacitors and connectors.
Panel size, board thickness and number of boards per panel.
Panels per hour and number of board types.
Dust extraction already available on your floor.

Turn the claim into a demonstration.

Require this	A pass looks like
Separate a counted batch of your own panels.	Edges within your drawing tolerance, no delamination or burrs beyond your standard, and results recorded.
Fit a strain gauge next to the component closest to the cut and separate a panel.	Measured strain stays below the limit your component makers state, with the reading recorded.
Run the router or laser with extraction for a full panel batch.	No visible dust or fume escaping the enclosure, and the extraction flow noted.

The documents that must arrive with it.

EU Declaration of Conformity citing 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, plus Low Voltage 2014/35/EU and EMC 2014/30/EU; for laser machines, the laser class under EN 60825-1 and EN ISO 11553.
Manual in the language of the country of use, with extraction requirements.
Drawings of the fixtures or dies made for your boards.

The one people forget. The fixture drawings. Without them, every new or worn fixture has to come back from the original factory, and a change of board layout waits on their lead time.

When this is the wrong machine.

Buy something else if

Named, not hedged

Your panels are tab-routed with irregular shapes.

A router depaneler; a V-cut blade machine cannot follow the outline.

You run a few panels a week with parts far from the edge.

A manual lever separator, or have the board maker supply single boards.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 15Fifteen marketplace listings for PCB depaneling machines, checked September 2026: six pneumatic V-cut blade units asked US$1,000 to US$4,000, four router machines asked US$8,400 to US$50,000, and four laser machines asked US$10,000 to US$186,000. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.
GAPGAP - no strain measurement held from any listed machine. One strain gauge test on a named board would show the real stress per method.

Related machines.

AOI inspection machine. Add an AOI machine when you need to check boards before they are separated and hard to handle.
Conformal coating machine. Look at conformal coating if separated boards go into humid or dirty service and need protection.

Every machine we source in this area is on the Electronics & assembly page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European PCB depaneling machine: what differs?+

Spindle and blade quality, and whether the maker can show strain data. Ask for that data first; it tells you more than the brand.

What should a PCB depaneling machine inspection checklist include?+

The three tests above, spindle run-out on a router, blade condition, and all interlocks on the cover.

What CE documentation does a depaneling machine need?+

A Declaration of Conformity with directives and standards, technical file and manual in your language. Laser types add the laser class.

Do I become the EU importer?+

Yes, if your business brings it in. Your name and address go on the machine or documents, and you keep the declaration.
