Buyer guide · Electronics & assembly

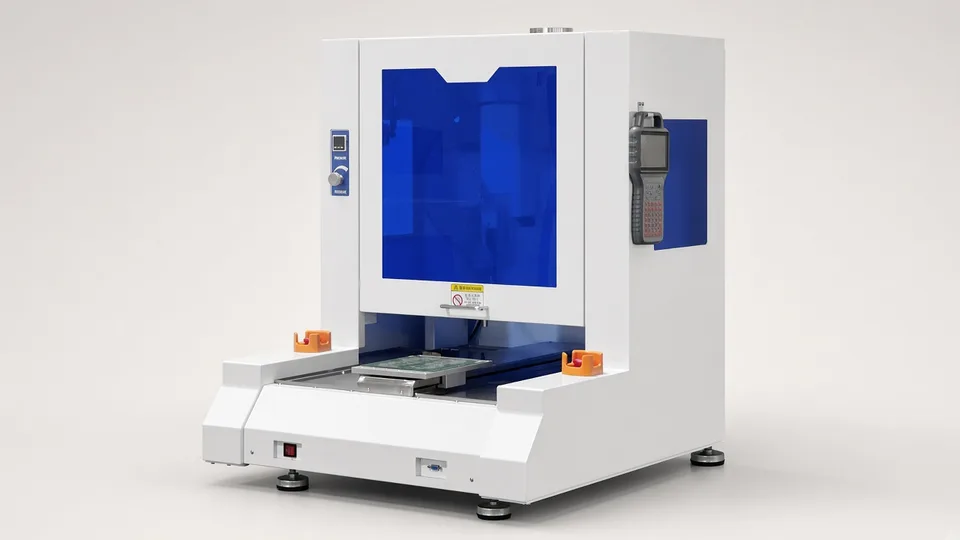

Conformal coating machine from China

A conformal coater must cover the board evenly and leave connectors and test points bare, and one stray drop in a connector turns a protected board into a scrapped one.

Ask about this machine ↗Where the numbers come from

Written and listings checked 30 September 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Valves and edge control

Needle, film and spray valves give different edge sharpness. Ask how many valves are fitted and how close to a keep-out zone each can stop.

Coating material fit

Acrylic, silicone, urethane and UV-cure coatings differ in viscosity. Ask which your valves are set for, and whether the supplier has run your material.

Curing: what is included

Three of fourteen listings we checked were only UV lamps or curing conveyors. Ask whether the price covers the coater, the oven or UV tunnel, or both.

Vapour and extraction

Solvent coatings give off flammable vapour. Ask the extraction airflow required and whether the supplier assessed the booth under ATEX 2014/34/EU.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Coating material by maker and product name.
Board drawing with keep-out areas marked.
Target dry film thickness and your coating standard.
Boards per hour and board size.
Cure method your material needs.

Turn the claim into a demonstration.

Require this	A pass looks like
Coat a counted batch of your boards with your material.	No coating inside keep-out areas under UV light, and the result recorded.
Measure wet or dry thickness at marked points.	All points inside your thickness range.
Run the cure and check coating hardness.	Coating fully cured at the line speed agreed, with no tack.

The documents that must arrive with it.

EU Declaration of Conformity citing 2006/42/EC, or Regulation (EU) 2023/1230 for delivery from 20 January 2027, plus Low Voltage 2014/35/EU and EMC 2014/30/EU.
Manual in your language with valve settings per material and cleaning steps.
Extraction and, where relevant, explosive atmosphere documentation.

The one people forget. The valve cleaning procedure. Coating cures inside a neglected valve, and a blocked valve on a Monday morning stops the line.

When this is the wrong machine.

Buy something else if

Named, not hedged

You coat a few boards a week.

Brushing or dipping by hand with masking, which costs far less.

You need potting or thick encapsulation, not a thin film.

A dispensing robot with a two-part meter-mix valve.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 14Fourteen marketplace listings under conformal coating system, checked September 2026: four were coating machines asking US$20,000 to US$60,000, three were UV curing lamps or conveyors, and the rest were other products. Asking prices, not landed cost.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Dispensing robot. Choose a dispensing robot for glue dots, sealing beads or potting rather than a thin protective film.
AOI inspection machine. Use an AOI machine before coating, since defects are hard to repair once the board is coated.

Every machine we source in this area is on the Electronics & assembly page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European conformal coating machine?+

Axes are alike. Valves and edge control differ most, so test your keep-out zones.

What is on a conformal coating inspection checklist?+

The three tests above and a UV light check under every connector.

What CE documentation does it need?+

A Declaration of Conformity, technical file and manual in your language.

Who is the EU importer?+

The business that brings it in; your name and address go on it.
