Buyer guide · Construction

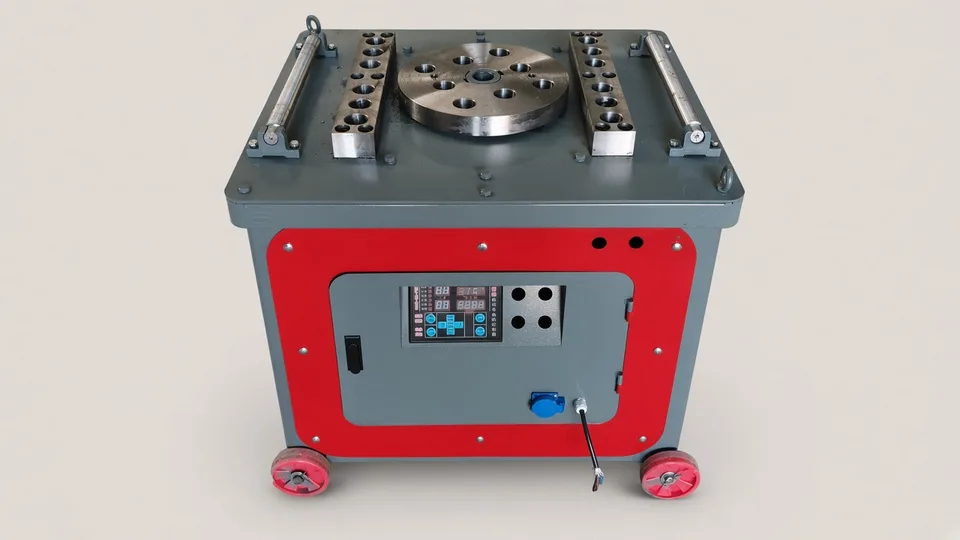

Rebar bending machine from China

A rebar bender is sold by the bar size in its name, but that size is for soft round bar; what matters is torque at your grade and the mandrel it bends around.

Ask about this machine ↗Where the numbers come from

Written and listings checked 1 October 2026. Every figure on this page names its source.

What you are actually comparing.

Two quotes, one machine name

What hides inside the price

Rated diameter and on what steel

Ask the ribbed bar maximum at your grade, and the strength it was rated at.

Mandrel and pin set

The mandrel sets the inside bend diameter. Check the supplied mandrels meet your design code for each bar size.

Angle control and repeatability

Manual stops, preset pedal angles or a multi bend program. Ask how repeatable the angle is.

Spindle speed and gearbox

A slow disc bends thick bar; a faster one suits stirrups.

Decode the model code.

In GW40 the 40 is round bar capacity in millimetres. Three of five listings rated ribbed rebar at 32 or 36 mm.

32 / 40 = 0.8: a fifth less diameter on ribbed bar.
Bar section: 32 x 32 = 1,024 against 40 x 40 = 1,600.

Before you ask for a price.

Send these with the enquiry. Without them, any number a factory gives you is a guess dressed as a quotation.

Your bar grade and largest ribbed bar diameter.
Your bending schedule: shapes and angles.
Mandrel diameters your design code asks for.
Bars per shift.
Site or yard use, and voltage.

Turn the claim into a demonstration.

Require this	A pass looks like
Bend your largest ribbed bar to 90 and 180 degrees on the correct mandrel.	No stall, and no cracks on the outside of the bend.
Bend 20 stirrups to one preset angle.	All inside the angle tolerance written in the offer.
Press the emergency stop during a bend.	The disc stops at once and stays stopped until reset.

The documents that must arrive with it.

EU Declaration of Conformity with the serial number: 2006/42/EC until 19 January 2027, then Regulation (EU) 2023/1230.
Rating table of bar diameter against steel strength.
Instructions covering the foot pedal and guarding.

When this is the wrong machine.

Buy something else if

Named, not hedged

You bend thousands of the same stirrup every day.

An automatic stirrup bender fed from coil.

You have no way to cut bar to length yet.

A rebar cutting machine first.

Where the numbers come from.

We name the kind of source, how many and when, and never the factory. Listed prices are asking prices, not landed cost. Where we do not hold a fact we say so: that is a GAP, not an estimate.

Listings · 4Four priced GW40 listings, checked October 2026, advertised US$350 to US$1,000, all with 3 kW motors. Asking prices, not landed cost.
Listings · 5Of five GW40 listings checked October 2026, three rated 40 mm round bar but 32 or 36 mm ribbed rebar; one rated 32 mm at 250 N/mm2 tensile. Spindle speeds ran about 5 to 14 rpm.
GAPGAP - no supplier quotations logged for this machine yet. Three to five quotations for one configuration would give a real price spread.

Related machines.

Rebar cutting machine. Choose a rebar cutter when cutting to length is your bottleneck.
Wire mesh welding machine. Choose a mesh welder when you sell welded mesh, not bent bars.

Every machine we source in this area is on the Construction page. How a project runs, stage by stage, is on how it works, and what it costs is on pricing.

Straight answers

Questions buyers ask about this machine.

Chinese vs European rebar bending machine: where is the difference?+

In gearbox life, pin hardness and honest ribbed bar ratings. Test on your grade.

What should a rebar bending machine inspection checklist cover?+

A bend on your largest bar, mandrels, angle repeatability and the emergency stop.

What CE documentation does a rebar bending machine need?+

A Declaration of Conformity with the serial number, and instructions for the foot control.

Who is the EU importer of a rebar bending machine?+

Usually your company, when you buy direct. Your name goes on the machine or its papers, and you check the conformity file.
